2024 - 2025 Swift Motorhomes
Overview
This quick reference index provides a list of the Sargent products fitted to 2024 and 2025 model year Swift Motorhomes.
If you are unsure which Sargent products are fitted to your Swift Motorhome, the index can be used to familiarise yourself with the products and their functions.
Panel Vans
Monza
Fitted as standard

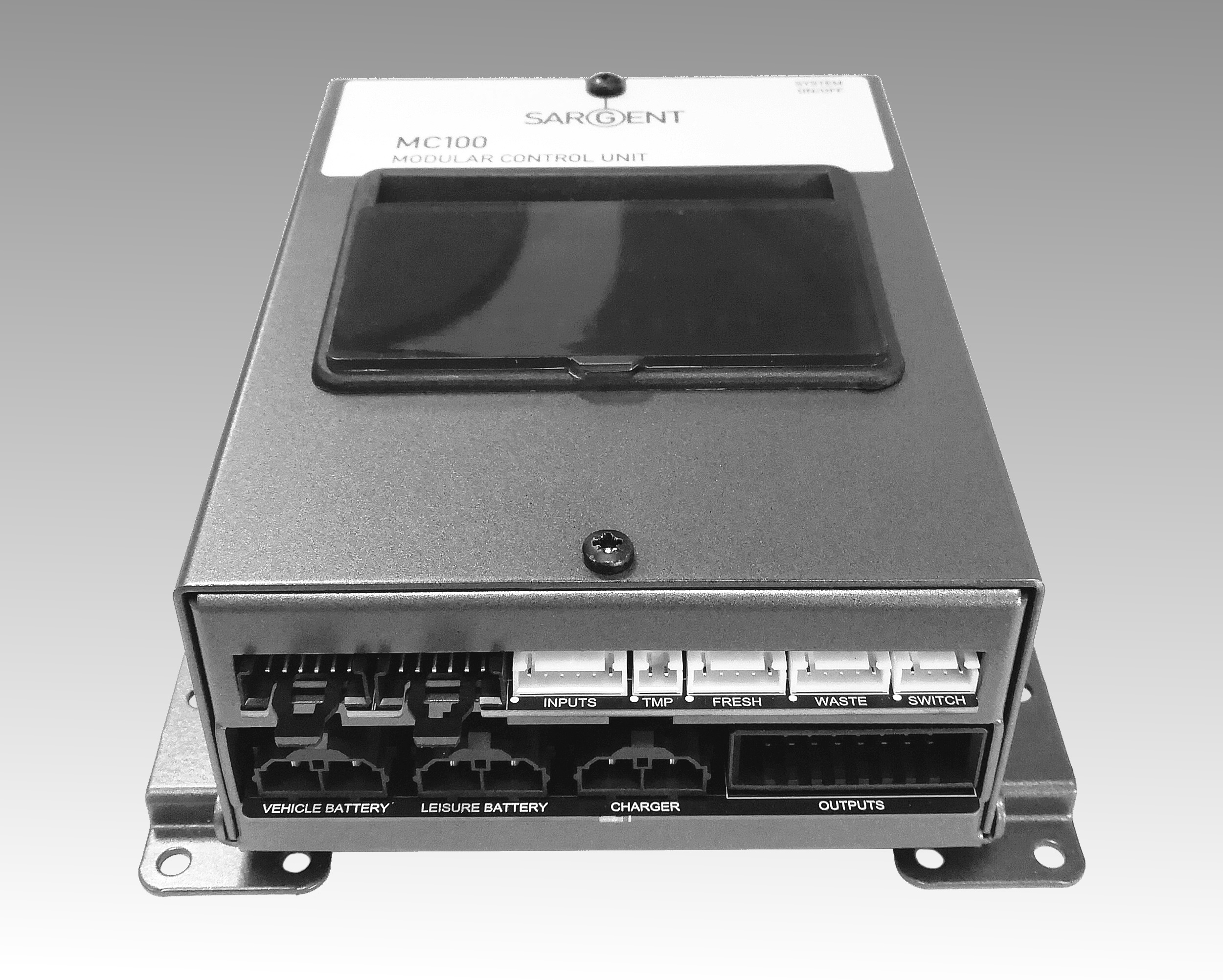

MC100 Modular Control Unit | The MC100 is the hub of the system providing power, switching and monitoring for 12 volt accessories such as heating, lighting and water systems. | |

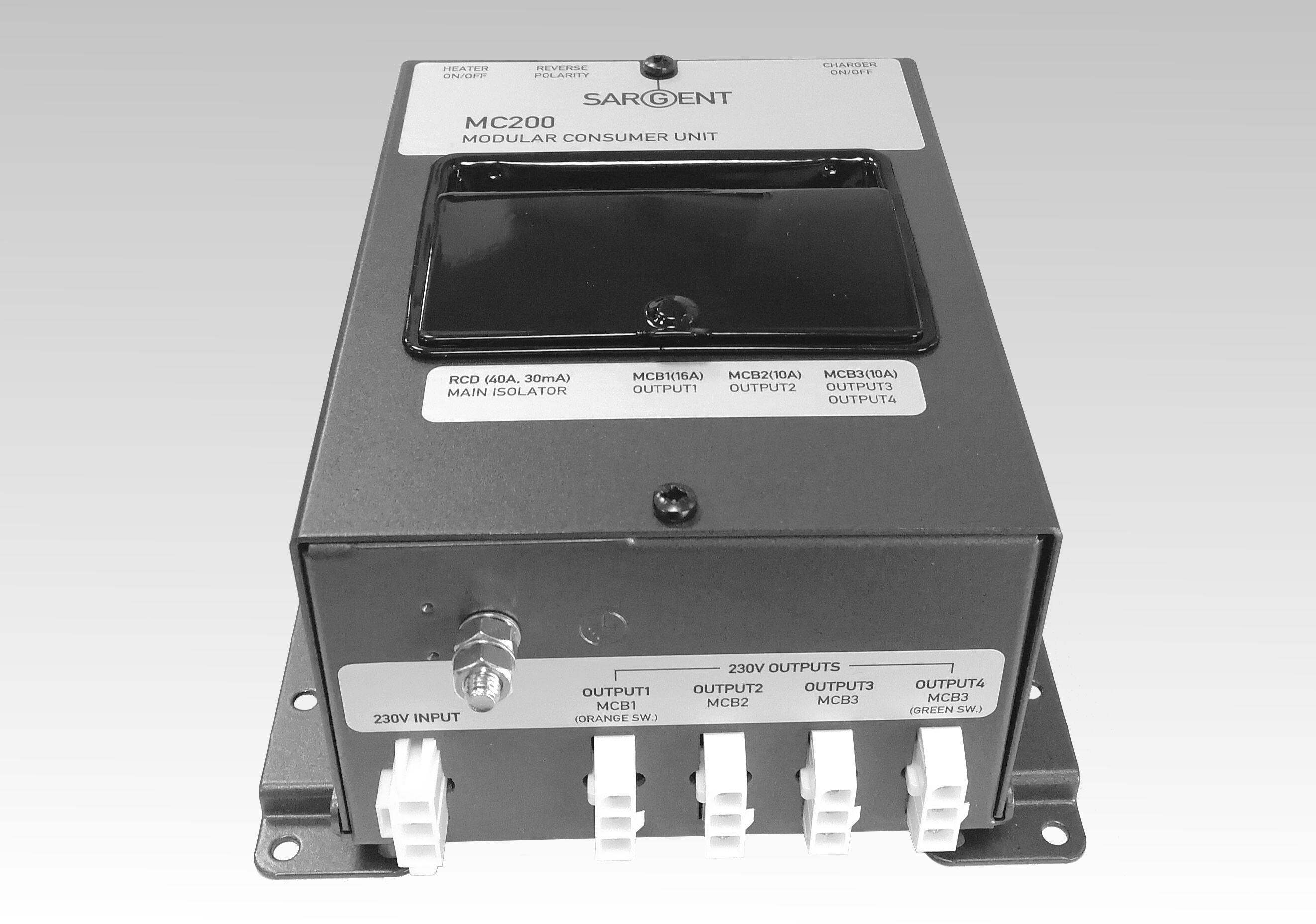

MC200 Modular Consumer Unit | The MC200 provides RCD and MCB protection for 230 volt accessories such as heating, 230V sockets, fridge and charging. Switches are also provided for controlling heating and charging systems. | |

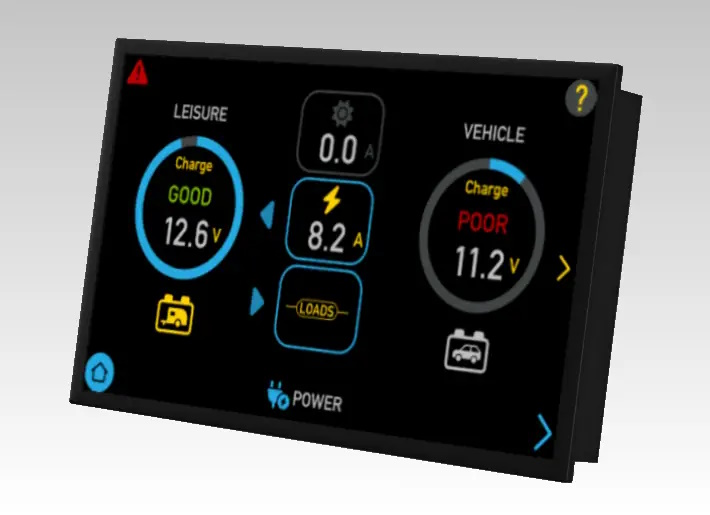

EC940 Control Panel | The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. | |
PX300 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. | |

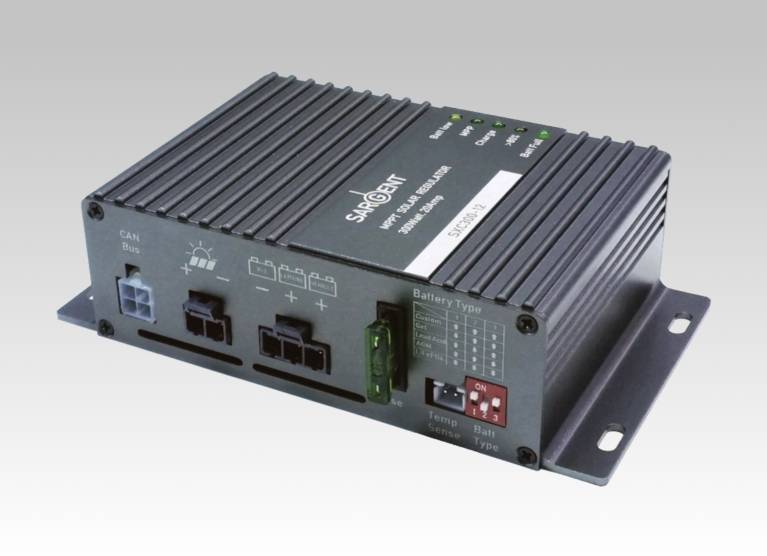

SXC300-12 Solar Regulator | The SXC300-12 is a 20A MPPT solar regulator which uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. The CAN bus connection provides detailed solar information on the EC900 series control panel. |
Carrera / Trekker
Fitted as standard
EC454/456 PSU | The EC454 / EC456 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. | |
EC940 Control Panel | The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. | |
PX300 / PX310 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. In later 2025 vans, the PX300 is replaced with the PX310. |
Carrera 244 only
SXC300-12 Solar Regulator | The SXC300-12 is a 20A MPPT solar regulator which uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. The CAN bus connection provides detailed solar information on the EC900 series control panel. |
Motorhome
Ascari
Fitted as standard
VLM5 Vehicle Light Monitoring Unit | The VLM5 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM5 unit). | |
| EM5 Reverse Camera Adaptor | The EM5.6 interface allows monitors to automatically display video signals from a twin camera (Reverse and Drive) interface to a single monitor output. | |
| EC454 PSU | The EC454 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. | |
| EC940 Control Panel | The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. | |
| PX300 / PX310 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. In later 2025 vans, the PX300 is replaced with the PX310. |
Voyager
Fitted as standard

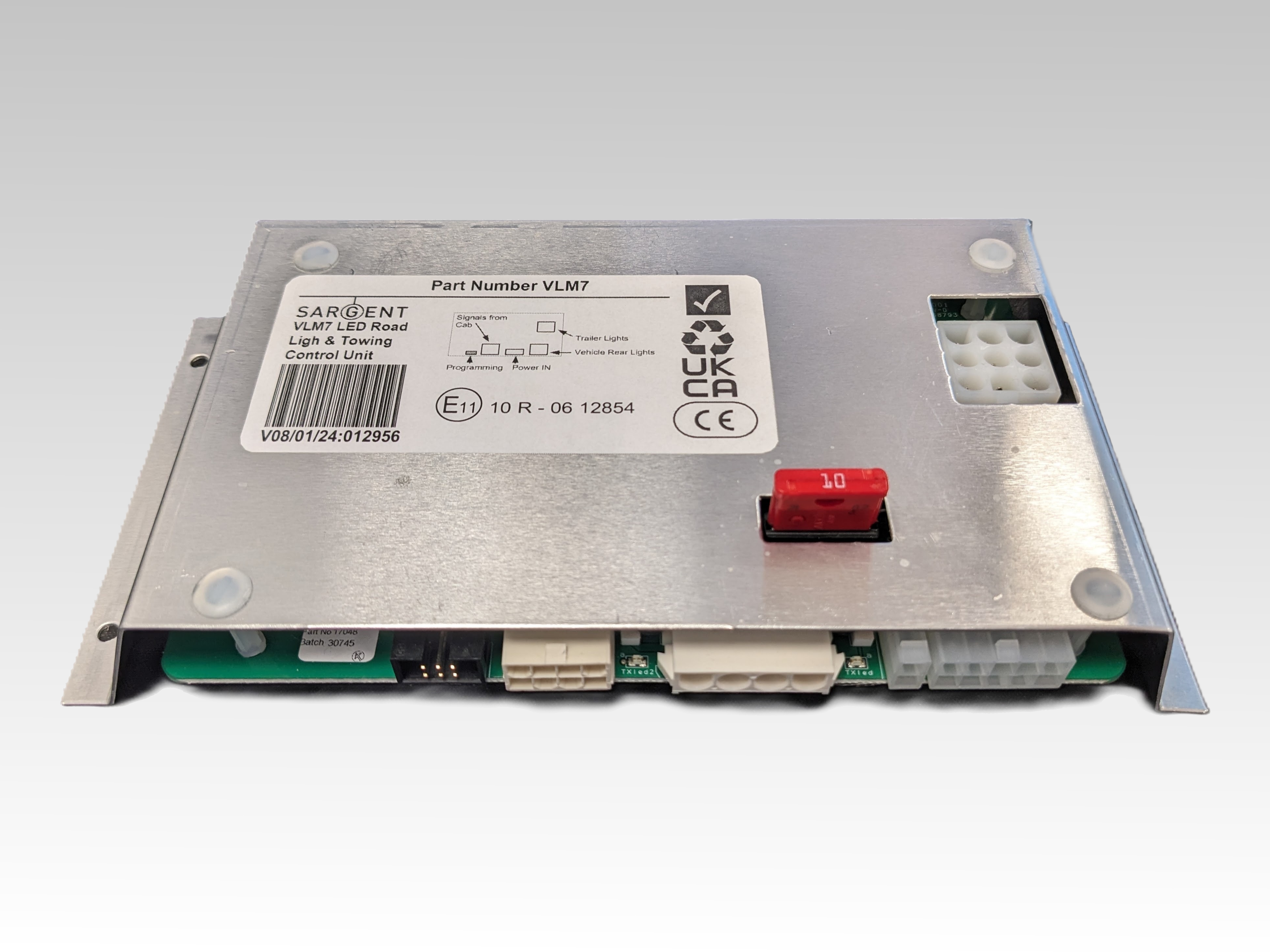

VLM7 Vehicle Light Monitoring Unit
The VLM7 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM7 unit).
EM5 Reverse Camera Adaptor
The EM5.6 interface allows monitors to automatically display video signals from a twin camera (Reverse and Drive) interface to a single monitor output.
EC454 / EC456 PSU
The EC454 / EC456 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System.
EC940 Control Panel
The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels.
PX300 / PX310 Charger
The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM.
In later 2025 vans, the PX300 is replaced with the PX310.
Fitted as standard
VLM7 Vehicle Light Monitoring Unit | The VLM7 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM7 unit). | |
| EM5 Reverse Camera Adaptor | The EM5.6 interface allows monitors to automatically display video signals from a twin camera (Reverse and Drive) interface to a single monitor output. | |
| EC454 / EC456 PSU | The EC454 / EC456 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. | |
| EC940 Control Panel | The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. | |
| PX300 / PX310 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. In later 2025 vans, the PX300 is replaced with the PX310. |
Escape
Fitted as standard
VLM5 Vehicle Light Monitoring Unit
The VLM5 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM5 unit).
EM5 Reverse Camera Adaptor The EM5.6 interface allows monitors to automatically display video signals from a twin camera (Reverse and Drive) interface to a single monitor output.
EC454 / EC456 PSU The EC454 / EC456 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System.
EC940 Control Panel The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels.
PX300 / PX310 Charger The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM.
In later 2025 vans, the PX300 is replaced with the PX310.
Kon-Tiki
Fitted as standard
VLM5 Vehicle Light Monitoring Unit | The VLM5 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM5 unit). | |
| EM5 Reverse Camera Adaptor | The EM5.6 interface allows monitors to automatically display video signals from a twin camera (Reverse and Drive) interface to a single monitor output. | |
| EC454 / EC456 PSU | The EC454 / EC456 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. | |
| EC940 Control Panel | The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. | |
| PX300 / PX310 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. In later 2025 vans, the PX300 is replaced with the PX310. |
Fitted as standard
VLM5 Vehicle Light Monitoring Unit | The VLM5 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM5 unit). | |
EM5.6 Reverse Camera Adaptor | The EM5.6 interface allows monitors to automatically display video signals from a twin camera (Reverse and Drive) interface to a single monitor output. | |
EC652/EC653 PSU | The EC651 / EC652 / EC653 / EC654 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. | |
EC970 Control Panel | The EC970 Control Panel is used in conjunction with the EC600 Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. | |
PX300 / PX310 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. In later 2025 vans, the PX300 is replaced with the PX310. |
