VLM7 (LED road light electronic control unit - Motorhome)
Overview

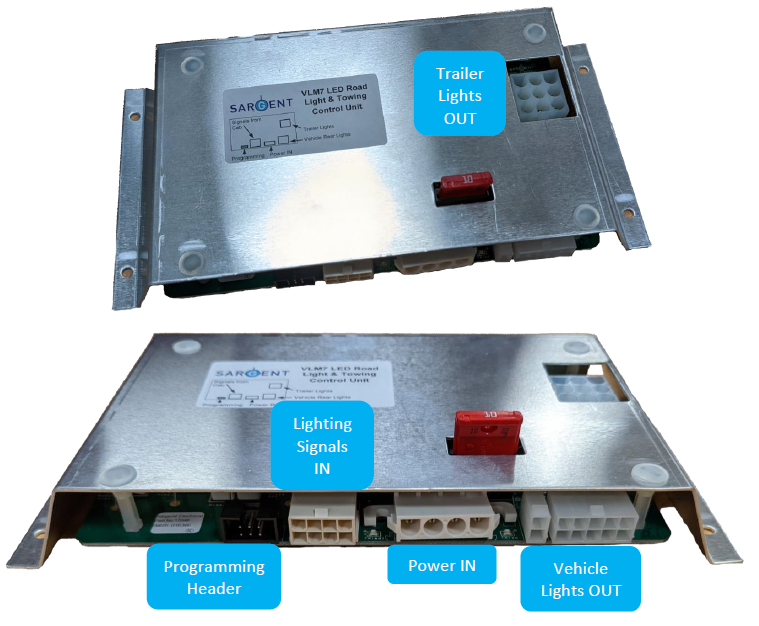

The VLM7 is an electronic module that is used in many motorhomes to control the rear LED road lighting. The unit
includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the
vehicle dashboard (and by a flashing indicator on the VLM7 unit).
The VLM7 also includes the facility to connect an optional towing harness to provide a 13-pin socket for connection
to a light board, trailer or caravan. When this socket is being used the direction indicator monitoring is extended to
cover the device / vehicle being towed.
