EM5.6 - Dual Camera Interface

EM5.6 - Dual Camera Interface


Overview

The EM5.6 interface allows a mirror monitor to automatically display video signals from a twin camera (Reverse and Drive).

Features

  1. Plug and play mini DIN connectors
  2. Reverse trigger input for automatic camera selection
  3. Compatible with RVM720, RVM730 monitors
  4. Compatible with RV207 dual camera

Connector Pinout

3 Pin Connector

Pin
Description
1
12V Power
2
Ground
3
Reverse Signal

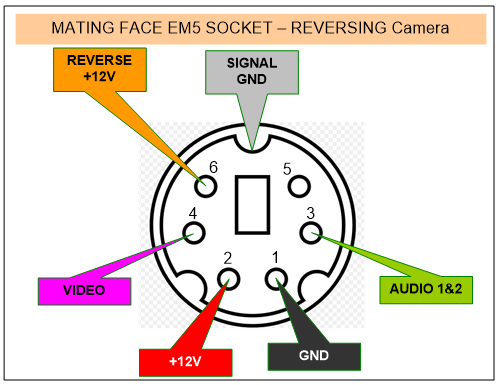

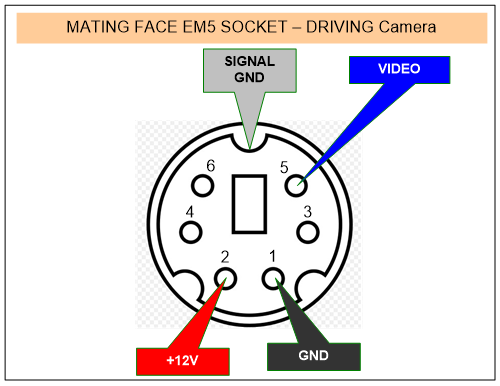

Driving Camera Input


Reversing Camera Input

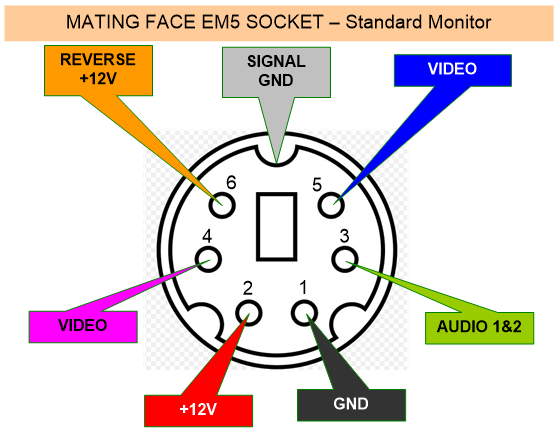

Monitor Output
