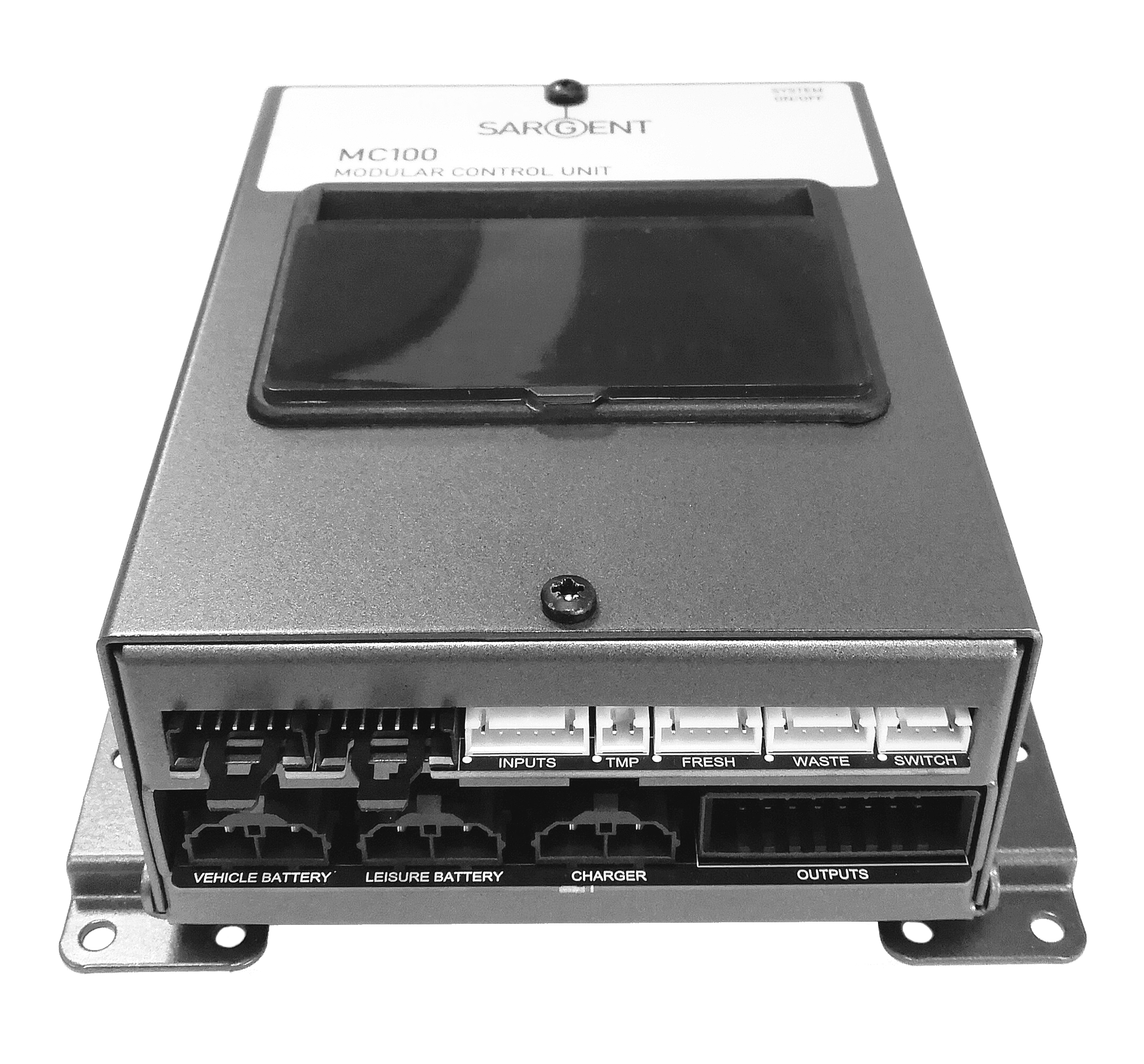

MC100 - Modular Control Unit
Overview
The MC100 is the hub of the system providing power, switching and monitoring for 12 volt accessories such as heating, lighting and water systems. The system can be easily expanded through the addition of intelligent CAN Bus accessories such as a Lithium batteries, Ultrasonic water sensors, Solar regulators & Battery chargers.
Features
- 12V protection via 8 x blade fuses (up to 25A total output)
- Leisure & Vehicle battery inputs (protected by 20A fuses)
- Battery Charger input (up to 25A)
- Fresh & Waste water tank sensor inputs
- Temperature and humidity sensors
- 2 x CAN Bus channels for control of additional accessories
Leisure & Vehicle battery inputs (protected by 20A fuses)
Battery Charger input (up to 25A)
Fresh & Waste water tank sensor inputs
Temperature and humidity sensors
