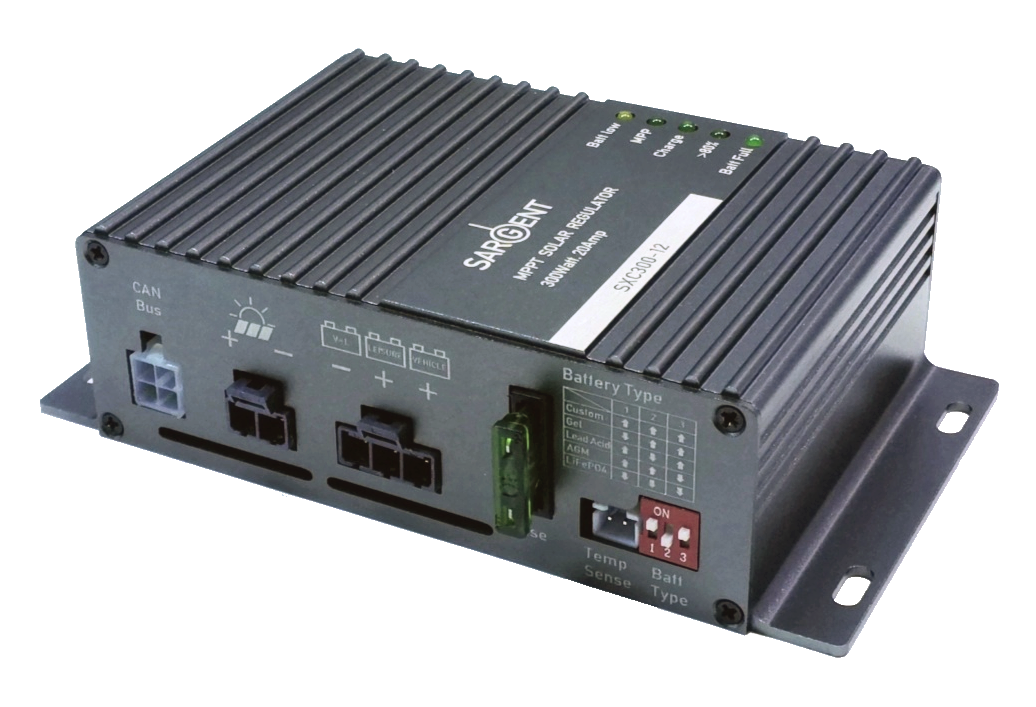

SXC300-12 - 300watt, 20amp Dual MPPT Solar Regulator with CAN Bus

SXC300-12 - 300watt, 20amp Dual MPPT Solar Regulator with CAN Bus


Overview

This 20amp solar regulator uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. In this way it can typically harvest 30% more energy than standard solar regulators. The configurable output provides multi-stage charging to the leisure battery and is also able to trickle charge the vehicle battery to avoid starting problems.

Features

  1. Up to 30% more energy - compared to standard PWM regulators
  2. Multi-Stage charging - 3-Stage profile maximises charge into leisure battery
  3. Dual Channel - can charge Leisure & Vehicle batteries at the same time
  4. Selectable battery types - optimised for Gel, Lead Acid, AGM & LiFePO4
  5. CAN Bus Interface - Communicates charge status with other equipment
  6. Temperature compensation (optional) - automatically adjusts charging rate depending on temperature
  7. Quiet operation - from intelligent cooling fan
  8. Fully protected - built-in overload, short circuit & over temperature protection

Specification

Model
SXC300-12
Power
300W
Solar input voltage
15 - 50V
Output voltage
13.5 - 14.8V
Output current (Leisure)
                           (Vehicle)
20A (max)
2.5A (max)
Standby current
16mA (max)
Regulation method
MPPT
Efficiency
> 95%
Communication
CAN Bus
Dimensions (LxWxH)
84 x 118 x 41mm
Weight
407g
