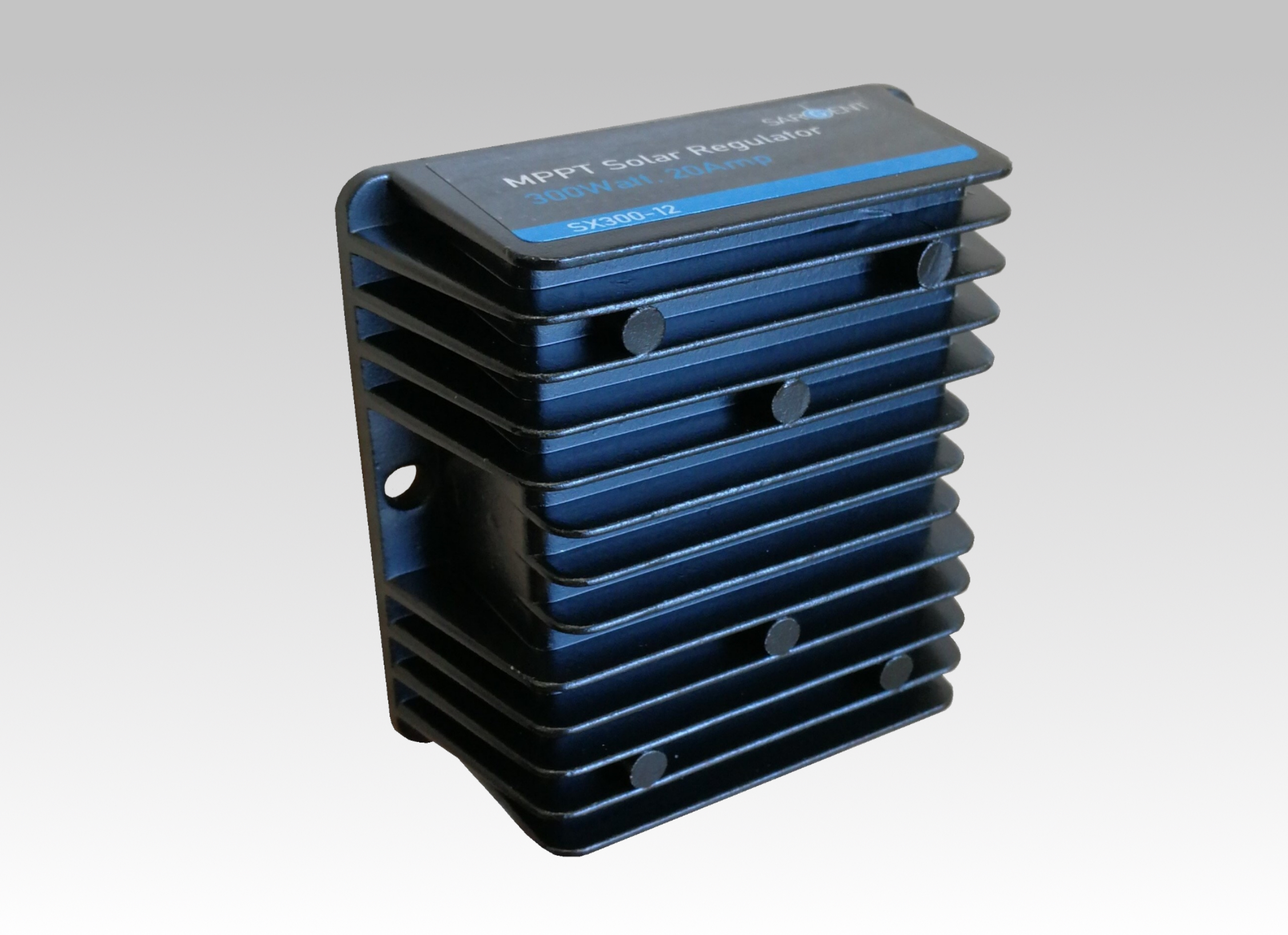

SX300-12 - 300watt, 20amp MPPT Solar Regulator

SX300-12 - 300watt, 20amp MPPT Solar Regulator


Overview

This 20amp solar regulator uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. In this way it can typically harvest 25% more energy than standard solar regulators. The regulators are compact and simple to fit via their plug & play connectors, as used on the Sargent solar panel ranges.

Features

  1. Up to 25% more energy - compared to standard PWM regulators
  2. Compatible with most lead acid leisure batteries
  3. IP67 weatherproof rating - fully protected against moisture ingress
  4. Fully protected - Built-in Overload, Short circuit & Over temperature protection
  5. Plug & Play - Quick fit Mate-N-Lok connectors compatible with Sargent solar panel range

Specification

Model
SX300
Power
300W
Solar input voltage
17 - 50V
Output voltage
13.8V
Output current
20A (max)
Standby current
15mA (max)
Regulation method
MPPT
Efficiency
96% (max)
Ingress rating
IP67
Dimensions (LxWxH)
74 x 74 x 32mm
Weight
300g
Cable length
250mm
