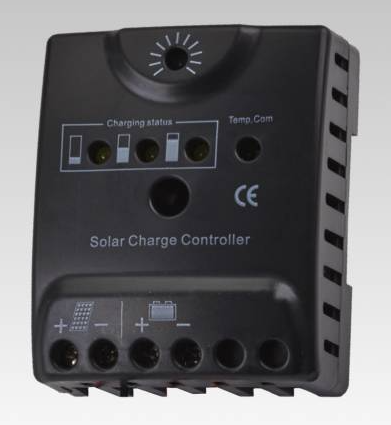

15220 - 150watt, 10amp Solar Regulator

15220 - 150watt, 10amp Solar Regulator


Overview

A 150 Watt Solar regulator and charge controller designed to assist with the efficient charge of leisure batteries. Features include two-stage charging, charge status indicators and reverse connection protection.

Features

  1. Multi-Stage charging - maximises charge into battery
  2. Selectable battery types - optimised settings for Flooded & Gel batteries
  3. Charging indicators - clearly displays charging status
  4. Temperature compensation - automatically adjusts charging rate depending on temperature
  5. Fully protected - built-in reverse polarity, overload & short circuit protection

Specification

Model
15220
Equalization Voltage 14.5V
Boost Voltage 14.8V
Float Voltage 13.7V
Max Charge Current 10A
Self Current Consumption <4mA
Temp. Comp. -4mV / cell * K
Temp. Range -40 ~ +50°C
Case Protection IP22
Max cable size 16mm2
Dimensions (LxWxH) 86 x 68 x 36mm
Weight 145g

This unit is supplied pre set to Lead Acid battery type; we don't recommend changing to Gel as this setting is intended for use with golf buggy type batteries not sealed AGM type leisure batteries used with caravans and motorhomes.
