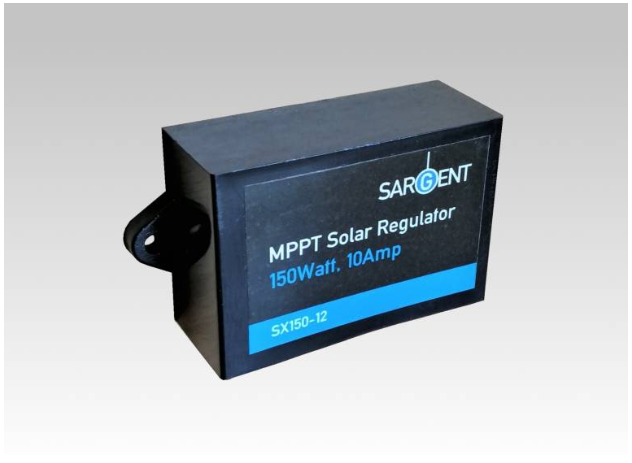

SX150-12 - 150watt, 10amp MPPT Solar Regulator

SX150-12 - 150watt, 10amp MPPT Solar Regulator


Overview

This 10amp solar regulator uses Maximum Power Point Tracking (MPPT) technology to extract the maximum possible energy from the connected solar panels. In this way it can typically harvest 25% more energy than standard solar regulators. The regulators are compact and simple to fit via their plug & play connectors, as used on the Sargent solar panel ranges.

Features

  1. Up to 25% more energy - compared to standard PWM regulators
  2. Compatible with most lead acid leisure batteries
  3. IP67 weatherproof rating - fully protected against moisture ingress
  4. Fully protected - Built-in Overload, Short circuit & Over temperature protection
  5. Plug & Play - Quick fit Mate-N-Lok connectors compatible with Sargent solar panel range

Specification

Model
SX150
Power
150W
Solar input voltage
16 - 25V
Output voltage
13.8V
Output current
10A (max)
Standby current
11mA (max)
Regulation method
MPPT
Efficiency
96% (max)
Ingress rating
IP67
Dimensions (LxWxH)
40 x 75 x 22mm
Weight
115g
Cable length
250mm
