EM6 - Camera Interface

EM6 - Camera Interface

Overview

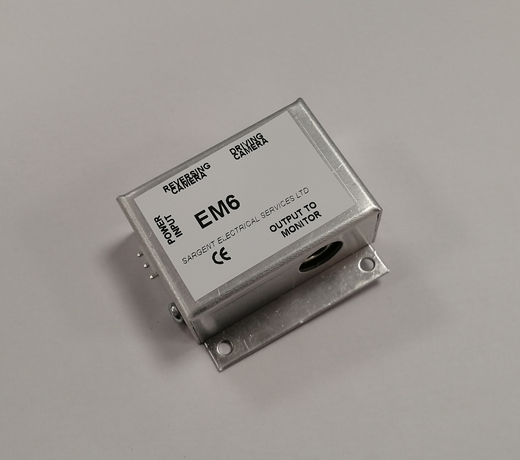

The EM6 interface allows a single mirror monitor to automatically display video signals from two separate cameras (Reverse and Drive).

Features

  1. Phono connector for camera inputs
  2. Plug and play mini DIN connectors for monitor output
  3. Reverse trigger input for automatic camera selection
  4. Compatible with RVM720, RVM730 monitors
  5. Compatible with the RV46 range of cameras (RV46R right camera, RV46L left camera, RV46V reversing / rear view) all with phono video connectors.

Connector Pinout

3 Pin Connector

Pin
Description
1
12V Power
2
Ground
3
Reverse Signal

Monitor Output
