EM2 - Camera Interface

EM2 - Camera Interface


Overview

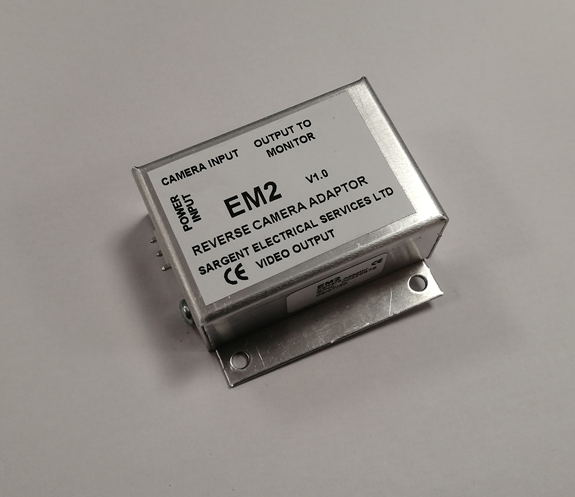

The EM2 interface allows a monitor to automatically display video signals from a reversing camera, when reverse gear is engaged.

Features

  1. Plug and play mini DIN connectors for camera input
  2. Phono connector for monitor output
  3. Reverse trigger input for automatic camera selection
  4. Compatible with head units with phono composite video inputs
  5. Compatible with RV42, RV44, RV66, RV67, RV77 cameras

Connector Pinout

3 Pin Connector

Pin
Description
1
12V Power
2
Ground
3
Reverse Signal

Camera Input
