EM3.5 - Camera Interface
Overview
The EM3.5 interface allows a mirror monitor to automatically display video signals from a reversing camera, when reverse gear is engaged.
Features
- Plug and play mini DIN connectors
- Reverse trigger input for automatic camera selection
- Compatible with RVM720, RVM730 monitors
- Compatible with RV42, RV44, RV66, RV67, RV77 cameras
Connector Pinout
3 Pin Connector
Pin | Description |
1 | 12V Power |
2 | Ground |
3 | Reverse Signal |

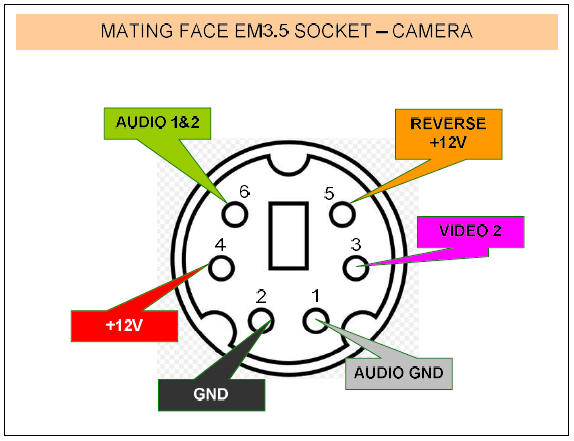

Camera Input

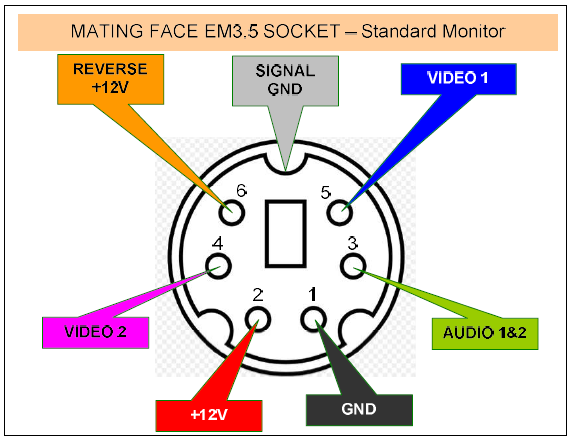

Monitor Output
