Glass Solar Panels

Glass Solar Panels


Overview

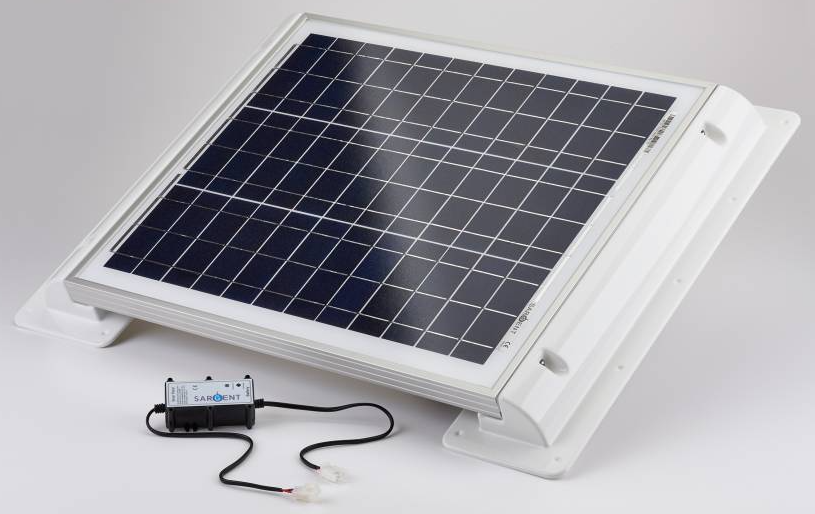

Our panels kits are designed for use on Motorhomes and Caravans, and are ideal for keeping your batteries topped up during outdoor storage as well as providing usable power during the day. The panels consist of an anodised aluminium frame, with a glass fronted panel made up of monocrystalline solar cells.

Features

  1. Output power available from 20 to 150 watts
  2. Robust metal framed construction - protects cells against damage
  3. Full fitting kit included - for a rapid, professional installation
  4. Solar regulator included - either 40watt or 200watt version
  5. Durable tempered glass - protects against hail and rain
  6. Weatherproof junction box - rated to IP66
  7. Plug & Play - Quick fit Mate-N-Lok connectors compatible with Sargent solar regulator range

Solar Panel Range

There is a wide range of glass solar panels available in different power ratings:
Power Rating
Sargent Part Number
Dimensions (mm)
Weight (Kg)
Crystal Type
Current at Pmax (A)
Voltage at Pmax (V)
Short-circuit Current (A)
Open Circuit Voltage (V)
20W
15575
325x550x25
-
Monocrystalline
1.14
17.6
1.32
22.2
40W
15614
625x550x35
4.5
Monocrystalline
2.32
17.24
2.48
21.03
60W
16042
1200x405x35
-
Monocrystalline
3.42
17.52
3.77
21.37
80W
16600
1010x534x35
8.5
Monocrystalline
4.39
18.28
4.69
21.99
100W
16501
1170x534x35
8.5
Monocrystalline
5.28
19.08
6.015
22.75
120W (2x60W)
15617
1200x405x35
-
Monocrystalline
6.84
17.52
7.54
21.37
120W (Single)
15780
1710x550x35
11
Monocrystalline
6.87
17.46
7.42
21.47

We stock solar panel kits available in the following link.

Fitting

You will need to purchase a suitable adhesive to fix the solar panel mounting brackets to the vehicle roof. We recommend a polyurethane adhesive sealant such as PU40 or Sikaflex 221
Please always check and follow the application notes provided with the adhesive.

Maintenance & Cleaning

The solar panel will require cleaning periodically in order to maintain the performance of the panel. A caravan or car shampoo or simple soap can be used, but do not use abrasive cleaners.
