2022 Swift Caravans
Overview
This quick reference index provides a list of the Sargent products fitted to 2022 model year Swift Caravans.
If you are unsure which Sargent products are fitted to your Swift Caravan, the index can be used to familiarise yourself with the products and their functions.
Caravan
Low Spec
Fitted as standard
C44 Fuse Box |  | This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control (ATC) unit. |
EC402 PSU | The EC400+ Series Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a caravan. The unit can be used in conjunction with a Control Panel to provide a complete Power Control System. | |
EC448 Control Panel | The EC448 control panel provides switching control and monitoring for caravans such as power, water pump and leisure battery. It also provides monitoring of the battery capacity. | |
PX300 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. |
Optional Extras
AS310 Alarm System | The AS310 is a full featured alarm system with wireless keyfob control for simple arming and disarming. It provides protection protection against vehicle theft using a self adjusting tilt sensor. |
High Spec
Fitted as standard
C44 Fuse Box | | This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control (ATC) unit. |
EC602 PSU | The EC602 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. | |

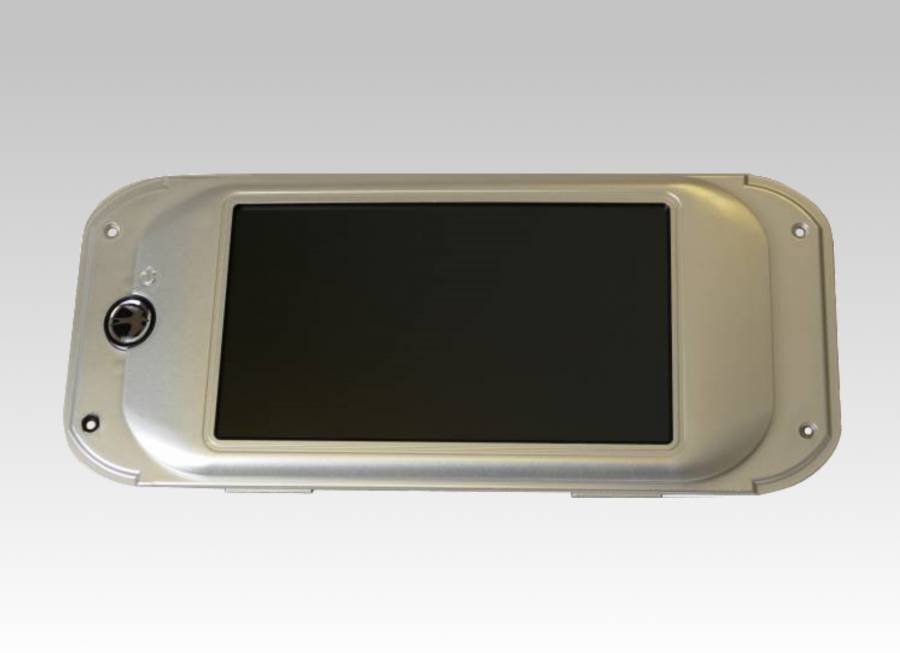

EC800 Control Panel |  | The EC800 Control Panel is used in conjunction with the EC800 Power Supply Unit, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. |

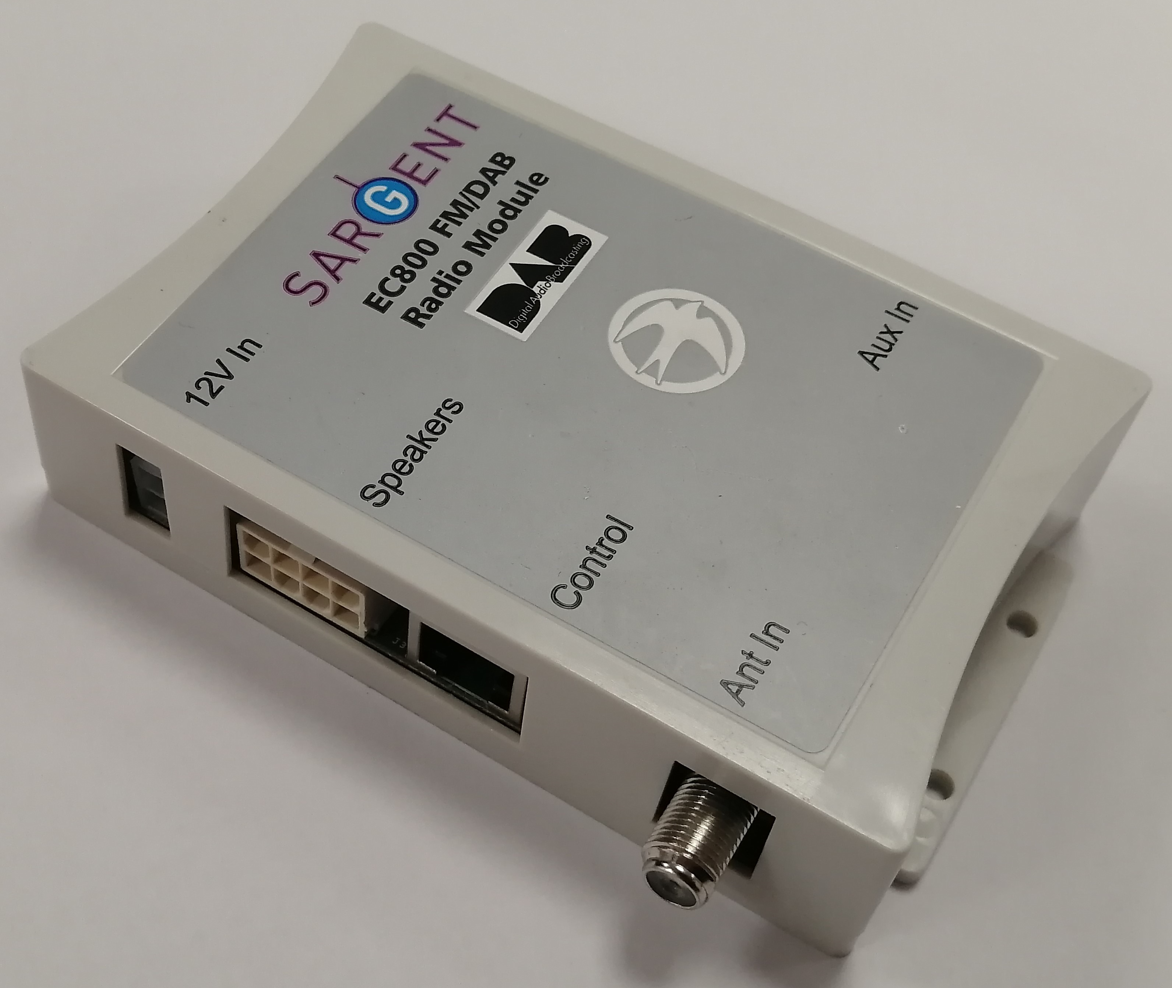

EC800 DAB Radio | The EC800 DAB Radio is used in conjunction with the EC800 Control Panel, to implement a DAB radio into the caravan along with an FM radio and Auxiliary input which is all controlled using the EC800 Control Panel. | |
PX300 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. |
Optional Extras
AS310 Alarm System | The AS310 is a full featured alarm system with wireless keyfob control for simple arming and disarming. It provides protection protection against vehicle theft using a self adjusting tilt sensor. |
Basecamp
Fitted as standard
C44 Fuse Box | | This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control(ATC) unit. |
EC402 PSU | The EC400+ Series Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a caravan. The unit can be used in conjunction with a Control Panel to provide a complete Power Control System. | |
EC448 Control Panel | The EC448 control panel provides switching control and monitoring for caravans such as power, water pump and leisure battery. It also provides monitoring of the battery capacity. | |
PX300 Charger | The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. |
Optional Extras
AS310 Alarm System | The AS310 is a full featured alarm system with wireless keyfob control for simple arming and disarming. It provides protection protection against vehicle theft using a self adjusting tilt sensor. |
