Overview

The EC800 DAB Radio is used in conjunction with the EC800 Control Panel, to implement a DAB radio into the caravan along with an FM radio and Auxiliary input which is all controlled using the EC800 Control Panel.
​
Features
  1. DAB Radio
  2. FM Radio
  3. Aux 3.5mm Input

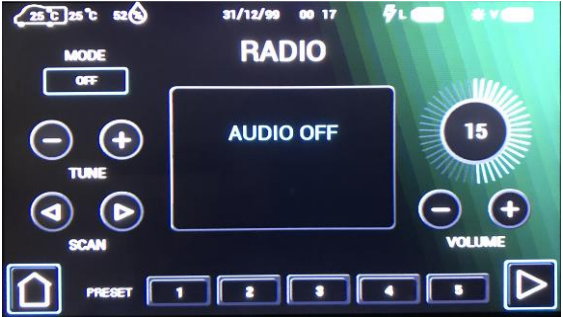

EC800 Control Panel

  1. Mode
    1. Press the mode button to select the required radio mode, available choices vary by specification and include FM, DAB, Aux 3.5mm Input or Off. Select Off to turn the radio off.
  2. Tune
    1. Press the + or - buttons to increase or decrease the tuned frequency.
  3. Scan
    1. Press the < or > Buttons to scan forward for the next station or to scan backwards for the previous station.

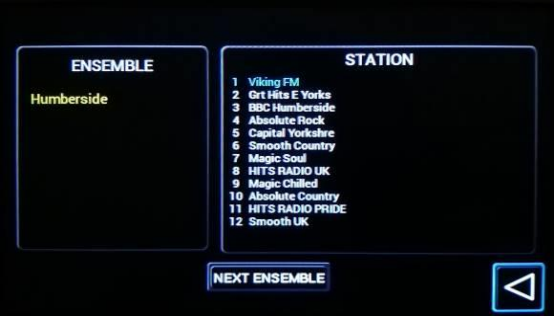

Whilst in DAB mode, you can press the central box where the DAB Radio station is being displayed to open the full station list for the selected Ensemble. You can return to the main screen by pressing the < button.


More information about the DAB radio controls can be found in the attached EC800 System Instructions.
