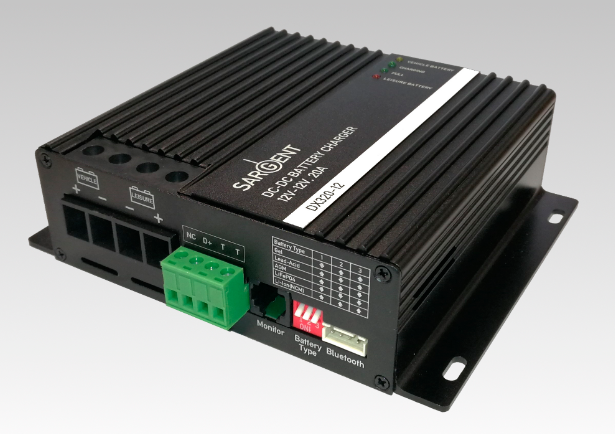

DX320-12 - 20amp, 3-Stage DC-DC Battery Charger
Overview
This unit takes power from the vehicle battery and alternator, to provide a rapid multi-stage charging of a leisure battery. It is particularly useful when the base vehicle is fitted with a smart alternator, such as Euro6 vehicles. The charger can provide up to 20 amps to the leisure battery and uses a 3-Stage profile to ensure fast, efficient charging during driving.
The unit can be configured for most leisure battery types, including Lead Acid, Gel, AGM & LiFePO4 (We advise checking compatibility with your battery manufacturer before installing)
The charger also features a rugged extruded casing with intelligent fan cooling to reduce noise.
Features
- Multi-Stage charging - 3-Stage profile maximises charge into the leisure battery
- Vehicle battery protection - charging is automatically reduced to avoid over-discharge
- Selectable battery types - optimised for Gel, Lead Acid, AGM, LiFePO4 & Lithium Ion
- Charging indicators - clearly display charging status
- Temperature compensation (optional) - automatically adjusts charging rate depending on temperature
- Quiet operation - from intelligent fan cooling
- Fully protected - built-in overload, short circuit & over temperature protection
Specification
Model | DX320-12 |
Power | 260W (max) |
Input Voltage Range | 10.5 - 15.4V |
Output Voltage Range | 8 - 16V |
Output Current | 20A (max) |
Standby Current | 17mA (max) |
Regulation Method | Buck / Boost |
Efficiency @12V | 94% |
Engine Run (D+) Input | Yes |
Dimensions (LxWxH) | 147 x 118 x 41mm |
Weight | 460g |
For suitable batteries see the NCC's battery scheme
or seek advice from the battery manufacturer
