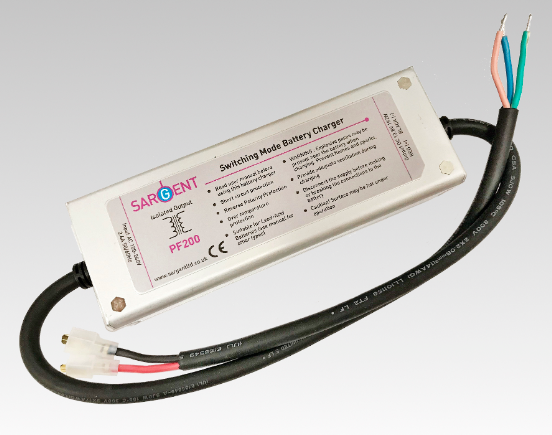

PF200 - 14amp, 2-Stage Battery Charger
Overview
The PF200 two-stage battery charger is ideal for leisure applications, providing power for both battery charging
and 12 volt appliances within a very compact size. The unit can run silently even under full load, due to its
efficient fanless design.
Features
- Multi-Stage charging - 2-Stage profile maximises charge into the leisure battery
- High capacity output - up to 14 Amps for charging batteries from 85 to 110Ah
- High efficiency - ensures cool running, suitable for use in restricted spaces
- Silent operation - from fanless cooling
- Fully protected - built-in overload, short circuit & over temperature protection
Specification
Model | PF200
|
Power | 192W |
Input Voltage | 100 - 240VAC |
Charging Current (max) | 14A @ 13.8V |
Output Voltage | 13.8V |
Compatible Batteries | Flooded (see info) |
Battery Size | 85 - 110Ah |
Cooling Method | Passive |
Dimensions (LxWxH) | 200 x 63 x 35mm |
Weight | 0.84kg |
For suitable batteries see the NCC's battery scheme
or seek advice from the battery manufacturer
