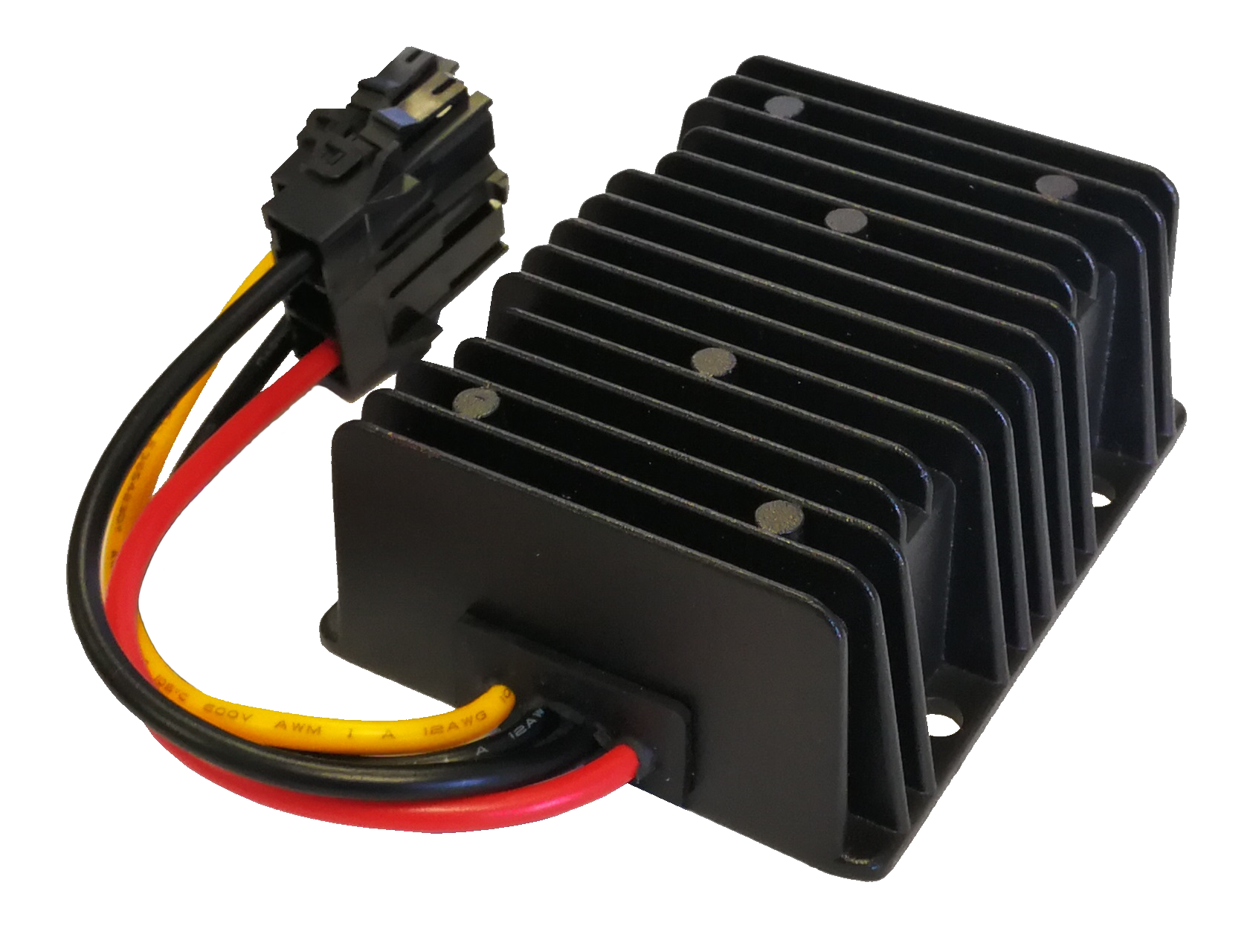

DC20-12 - 20amp, DC-DC Booster for Fridges
Overview
This unit is a compact, cost effective option for boosting the 12 volt supply to absorption type fridges during driving. This ensures the fridge can deliver its optimum cooling performance and its contents remain chilled for the whole journey. The unit features a rugged waterproof casing with silent fanless cooling.
Recommended for use on fridge elements up to 170 Watts maximum
Features
- Improves fridge cooling - by boosting voltage to fridge 12V supply
- Silent operation - Heavy duty fanless design
- Plug & Play - Quick fit connectors provide rapid installation
- IP68 waterproof rating - Epoxy potting protects electronics against moisture ingress
- Fully protected - built-in overload, short circuit & over temperature protection
Specification
Model | DC20-12 |
Output Power 10V Input 11V Input 12V Input 13V Input | 181W (max) 197W (Max) 215W (max) 234W (max) |
Input Voltage Range | 10 - 16V DC |
Output Voltage | 14.5V |
Output Current | 20A (max) |
Standby Current | 20mA (max) |
Regulation Method | Boost |
Efficiency @12V | 95% |
Ingress Rating | IP68 |
Dimensions (LxWxH) | 100 x 78 x 39mm |
Weight | 500g |
