2026 Swift Caravans

Overview

This quick reference index provides a list of the Sargent products fitted to 2026 model year Swift Caravans.

If you are unsure which Sargent products are fitted to your Swift Caravan, the index can be used to familiarise yourself with the products and their functions.

​

Sprite

Fitted as standard:

C44+ Road Light Fuse Box		This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control (ATC) unit. More information about the C44+ Fuse Box can be found by Clicking Here
EC402 PSU		The EC400+ Series Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a caravan. The unit can be used in conjunction with a Control Panel to provide a complete Power Control System. More information about the EC402 PSU can be found by Clicking Here
EC448 Control Panel		The EC448 control panel provides switching control and monitoring for caravans such as power, water pump and leisure battery. It also provides monitoring of the battery capacity. More information about the EC448 Control Panel can be found by Clicking Here

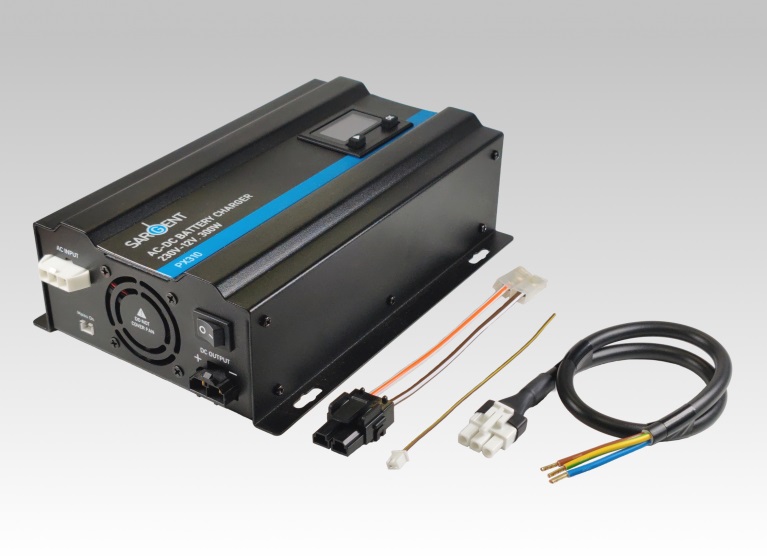

PX310 Charger		The PX310 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 220Ah including Lead-acid, AGM and Lithium. More information about the PX310 can be found by Clicking Here
AS350 Alarm System		The AS350 is a full featured alarm system with wireless keyfob control for simple arming and disarming. It provides protection protection against vehicle theft using a self adjusting tilt sensor. The 120 degree PIR sensor detects body movement within the vehicle. More information about the AS350 Alarm can be found by Clicking Here

​

Challenger / Challenger Grande / Conqueror / Conqueror Grande

Fitted as standard:

C44+ Road Light Fuse Box		This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control (ATC) unit. More information about the C44+ Fuse Box can be found by Clicking Here
EC403 PSU		The EC400+ Series Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a caravan. The unit can be used in conjunction with a Control Panel to provide a complete Power Control System. More information about the EC403 PSU can be found by Clicking Here
EC940 Control Panel		The EC940 Control Panel is used in conjunction with the EC400+ Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. More information about the EC940 Control Panel can be found by Clicking Here
PX310 Charger		The PX310 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 220Ah including Lead-acid, AGM and Lithium. More information about the PX310 can be found by Clicking Here
AS350 Alarm System		The AS350 is a full featured alarm system with wireless keyfob control for simple arming and disarming. It provides protection protection against vehicle theft using a self adjusting tilt sensor. The 120 degree PIR sensor detects body movement within the vehicle. More information about the AS350 Alarm can be found by Clicking Here

​

Elegance Grande

Fitted as standard:

C44+ Fuse Box		This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control (ATC) unit. More information about the C44+ Fuse Box can be found by Clicking Here

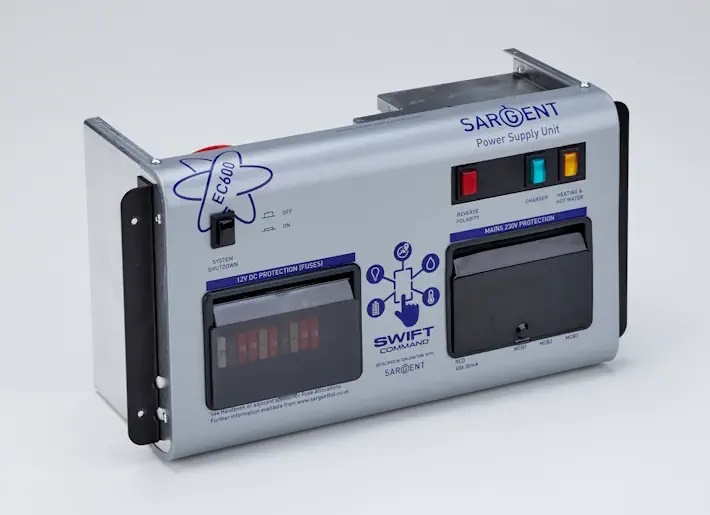

EC601 PSU		The EC600 Series Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. More information on the EC601 PSU can be found by Clicking Here
EC970 Control Panel		The EC970 Control Panel is used in conjunction with the EC600 Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. More information about the EC970 Control Panel can be found by Clicking Here
PX310 Charger		The PX310 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 220Ah including Lead-acid, AGM and Lithium. More information about the PX310 can be found by Clicking Here
AS350 Alarm System		The AS350 is a full featured alarm system with wireless keyfob control for simple arming and disarming. It provides protection protection against vehicle theft using a self adjusting tilt sensor. The 120 degree PIR sensor detects body movement within the vehicle. More information about the AS350 Alarm can be found by Clicking Here

Basecamp

Fitted as standard:

C44+ Fuse Box		This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310/AS350 alarm and Automatic Trailer Control(ATC) unit. More information about the C44+ Fuse Box can be found by Clicking Here
EC602 PSU		The EC602 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a caravan. The unit can be used in conjunction with a Control Panel to provide a complete Power Control System. More information about the EC602 PSU can be found by Clicking Here
EC970 Control Panel		The EC970 Control Panel is used in conjunction with the EC600 Series Power Supply Units, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. More information about the EC970 Control Panel can be found by Clicking Here
PX310 Charger		The PX310 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 220Ah including Lead-acid, AGM and Lithium. More information about the PX310 can be found by Clicking Here
