2019 - 2022 Auto-Trail Motorhomes
Overview
This quick reference index provides a list of the Sargent products fitted to 2019 to 2022 model year Auto-Trail Motorhomes.
If you are unsure which Sargent products are fitted to your Auto-Trail Motorhome, the index can be used to familiarise yourself with the products and their functions.
Twist, Benivan & Toleno

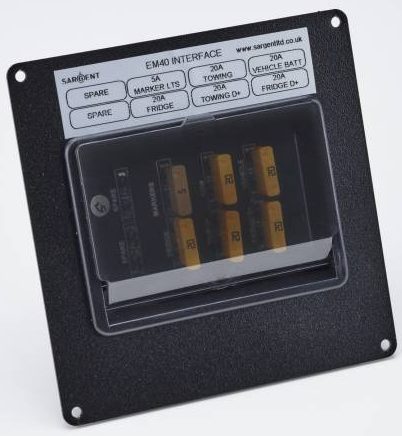

EM40 / EM41 Fiat Interface Unit | The unit provides fused outputs for a the 12V fridge, vehicle battery supply and tow bar. It also has a marker lights output and passes all signals from the Fiat base signal so they can be used by other systems ( door lock/unlock, ignition on, engine running). It was used in all Auto-Trail Fiat motorhomes up to 2021. In 2022 the EM40 is fitted in models with a small fridge/freezer; In models fitted with a large fridge/freezer the EM41 interface fuse box is fitted. | |
EC176 PSU | The unit is used in conjunction with a Control Panel, and Water Level Sensors to provide a complete Power Control System. Depending upon the control panel used, an internal/external temperature sensor & tracking system may also be fitted. | |

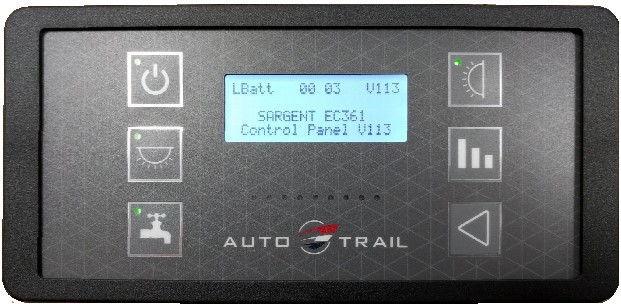

EC361 Control Panel | These control panels are designed to work in in conjunction with the EC176 PSU for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks. | |

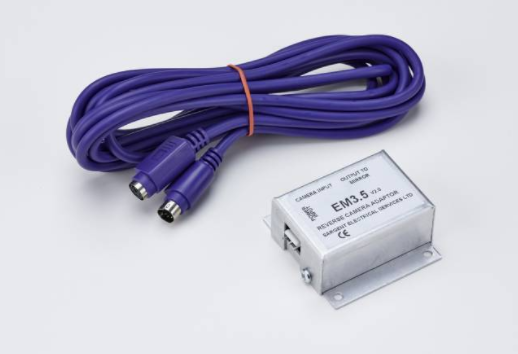

EM3.5 Interface | The EM3.5 interface allows monitors to automatically display video signals from a reversing camera, when reverse gear is engaged. |
Tribute, Imala & V-Line

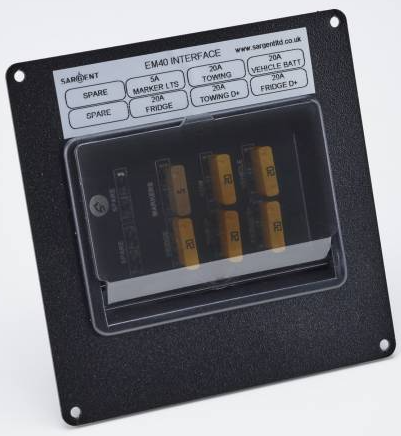

EM40 / EM41 Fiat Interface Unit | The unit provides fused outputs for a the 12V fridge, vehicle battery supply and tow bar. It also has a marker lights output and passes all signals from the Fiat base signal so they can be used by other systems ( door lock/unlock, ignition on, engine running). It was used in all Auto-Trail Fiat motorhomes up to 2021. In 2022 the EM40 is fitted in models with a small fridge/freezer; In models fitted with a large fridge/freezer the EM41 interface fuse box is fitted. | |
VLM5 Vehicle Light Monitoring Unit | The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM5 unit). The VLM5 also includes the facility to connect an optional towing harness to provide a 13-pin socket for connection to a light board, trailer or caravan. | |
EC176 PSU | The unit is used in conjunction with a Control Panel, and Water Level Sensors to provide a complete Power Control System. Depending upon the control panel used, an internal/external temperature sensor & tracking system may also be fitted. | |
EC362 Control Panel | These control panels are designed to work in in conjunction with the EC176 PSU for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks. | |
EM3.5 Interface | The EM3.5 interface allows monitors to automatically display video signals from a reversing camera, when reverse gear is engaged. |
Tracker, Frontier (Delaware, Scout, Comanche), Grande Frontier

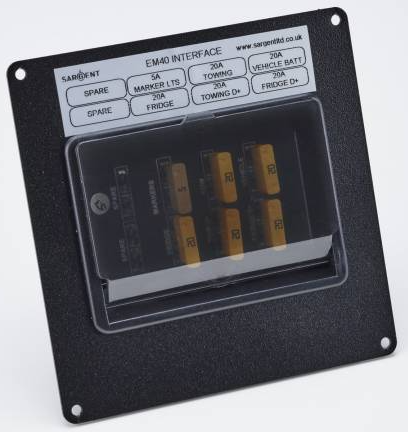

EM40 / EM41 Fiat Interface Unit | The unit provides fused outputs for a the 12V fridge, vehicle battery supply and tow bar. It also has a marker lights output and passes all signals from the Fiat base signal so they can be used by other systems ( door lock/unlock, ignition on, engine running). It was used in all Auto-Trail Fiat motorhomes up to 2021. In 2022 the EM40 is fitted in models with a small fridge/freezer; In models fitted with a large fridge/freezer the EM41 interface fuse box is fitted. | |
VLM5 Vehicle Light Monitoring Unit | The unit includes monitoring of the motorhome rear direction indicators so that if / when a failure occurs this is shown on the vehicle dashboard (and by a flashing indicator on the VLM5 unit). The VLM5 also includes the facility to connect an optional towing harness to provide a 13-pin socket for connection to a light board, trailer or caravan. | |
EC700 PSU | The EC700 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit is normally used in conjunction with a Control Panel, Battery Charger, Vehicle Interface Unit & Water Level Sensors to provide a complete Power Control System. | |
EC700 Control Panel | The EC700 Control Panel is used in conjunction with the EC700 Power Supply Unit, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. |
