2014 - 2018 Lunar Caravan & Motorhome

Overview

This quick reference index provides a list of the Sargent products fitted to 2014 to 2018 model year Lunar Caravans and Motorhomes.

If you are unsure which Sargent products are fitted to your Lunar Caravan or Motorhome, the index can be used to familiarise yourself with the products and their functions.

Caravan

Low Spec

EC175 PSU		The EC175 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit is used in conjunction with a Control Panel,  and Water Level Sensors to provide a complete Power Control System.  Depending upon the control panel used, an internal/external temperature sensor & tracking system may also be fitted. More information about the EC175 PSU can be found by Clicking Here

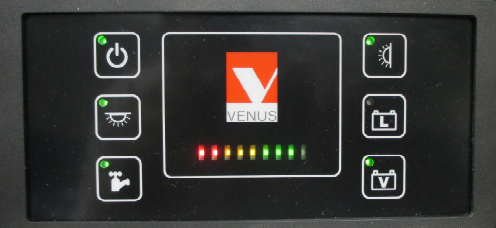

EC360 Control Panel		These control panels are designed to work in in conjunction with the EC175 PSU for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers and lighting. More information about the EC360 can be found by Clicking Here
EC350 Control Panel		These control panels are designed to work in in conjunction with the EC175 PSU for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers and lighting. More information about the EC350 can be found by Clicking Here

High Spec

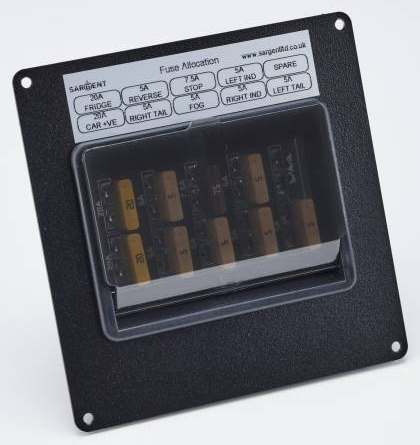

C44 Fuse Box		This small unit houses fuses for the road lighting circuits and supplies from the tow vehicle, and also has connectors for an AS310 /AS350 alarm and Automatic Trailer Control (ATC) unit. More information about the C44 Fuse Box can be found by Clicking Here

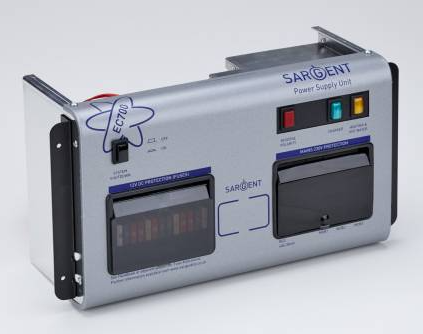

EC700 PSU		The EC700 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit is normally used in conjunction with a Control Panel, Battery Charger, Vehicle Interface Unit & Water Level Sensors to provide a complete Power Control System. More information about the EC700 PSU can be found by Clicking Here

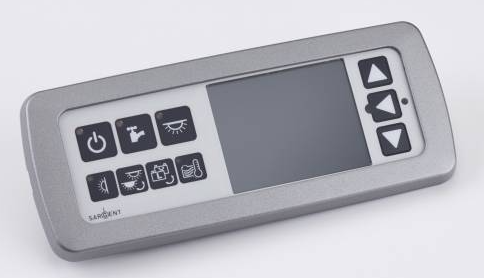

EC700 Control Panel		The EC700 Control Panel is used in conjunction with the EC700 Power Supply Unit, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. More information about the EC700 Control Panel can be found by Clicking Here
PX300 Battery Charger		The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. More information about the PX300 Charger can be found by Clicking Here

Motorhome

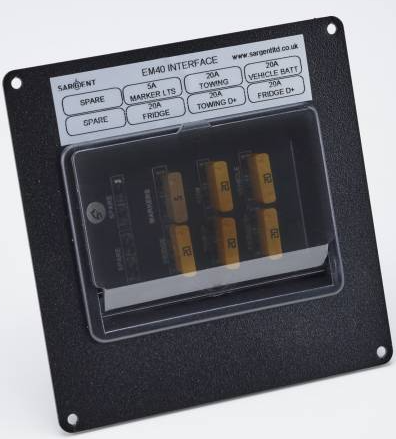

EM40 Interface Unit		The unit provides fused outputs for a the 12V fridge, vehicle battery supply and tow bar.  It also has a marker lights output and passes all signals from the Fiat base signal so they can be used by other systems ( door lock/unlock, ignition on, engine running). More information about the EM40 can be fund by Clicking Here

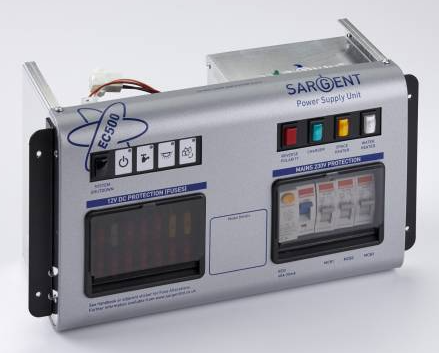

EC500 PSU		The EC500 Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a leisure vehicle. The unit can be used in conjunction with a control panel, water level sensors and solar panel to provide a complete Power Control System. More information about the EC500 PSU can be found by Clicking Here

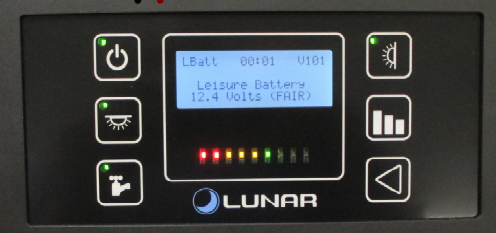

EC480 Control Panel		The EC480 Control Panel can be used in conjunction with the EC500 Series Power Supply Unit, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels. More information about the EC480 Control Panel can be found by Clicking Here
PX300 Battery Charger		The PX300 is a 300W 3-Stage Intelligent Battery Charger and Power Supply. The charger is compatible with most battery types up to 200Ah including Lead-acid, Gel & AGM. More information about the PX300 Charger can be found by Clicking Here
