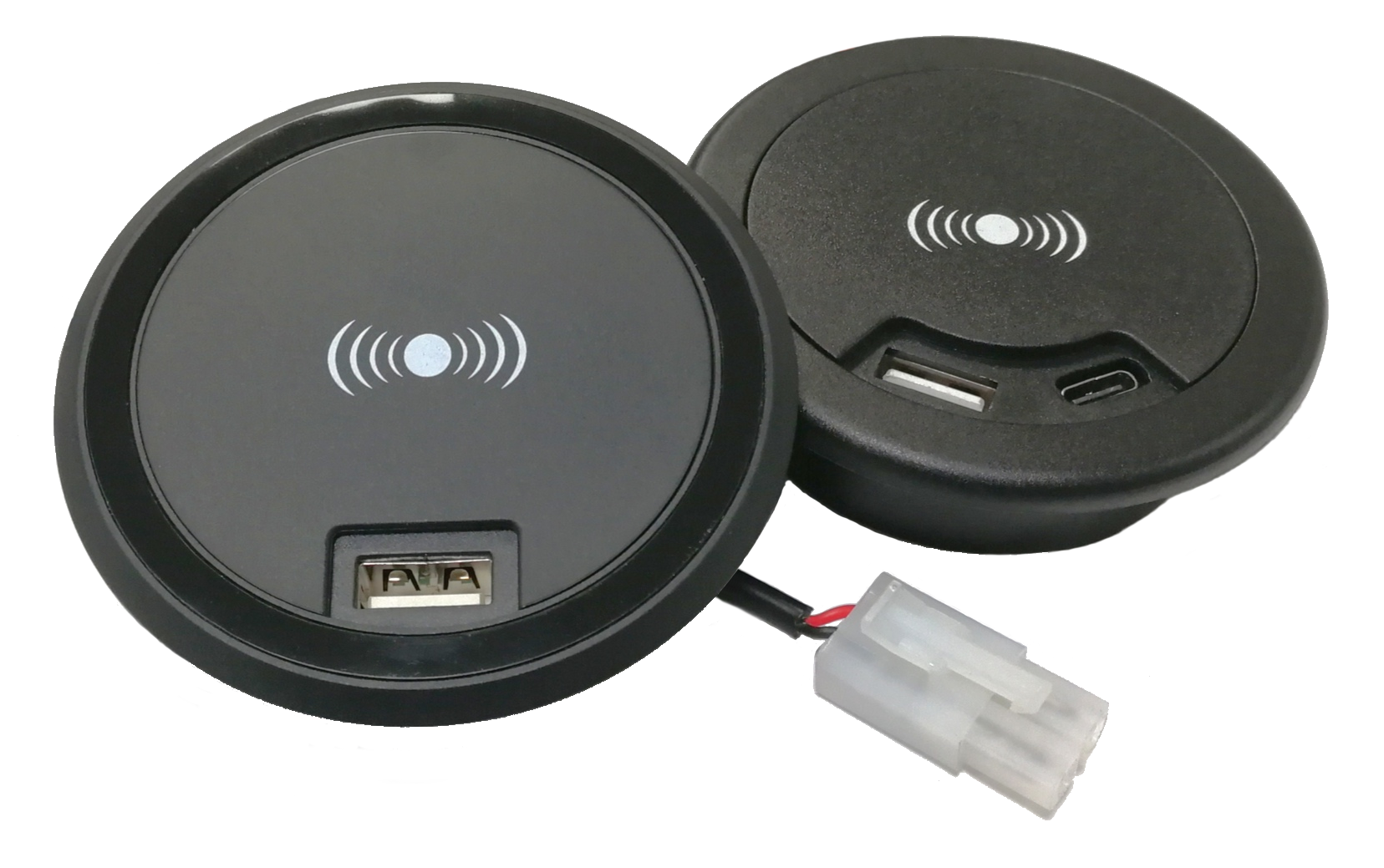

WX Series - Wireless Phone Chargers with USB
Overview
The WX series chargers are ideal for leisure vehicle applications, providing both wireless and wired charging of compatible Android & iOS smart phones at up to 15 watts. The units are designed for recess mounting into furniture to provide convenient counter top charging. They can be powered directly from a 12 volt leisure battery or from a 230V mains supply using the optional power adapter.
WX100: Up to 10watts charging with USB-A
WX150: Up to 15watts charging with USB-A & USB-C
Features
- Wireless charging - Compatible with Android & iOS phones using Qi charging standard
- Wired charging - via standard USB-A or USB-C (WX150 only)
- Anti-slip design - Non slip pad keeps phone in place
- Easy fitment - Convenient counter top installation with plug & play connector
Specification
Model | WX100 | WX150 |
Input voltage | 11.5 - 15V / 1.5A | 11.5 - 15V / 2A |
Wired Output(s) | USB-A: 5V / 2A | USB-A: 5A / 2.4A USB-C: 5V / 2.7A |
Wireless Output | Up to 10watts | Up to 15watts |
Standby Current | 15mA | 15mA |
Dimensions | 75mm (diam) x 22mm | 75mm (diam) x 22mm |
Weight | 57g | 57g |
