WLSU - Ultrasonic Water Sensors with CAN Bus
Overview
The Sargent ultrasonic sensor allows monitoring of water level in leisure vehicle fresh and waste water tanks. Contactless measurement improves accuracy and reduces the need for sensor cleaning. The unit automatically calibrates on first connection and can be easily re-calibrated to suit different depths of tanks.

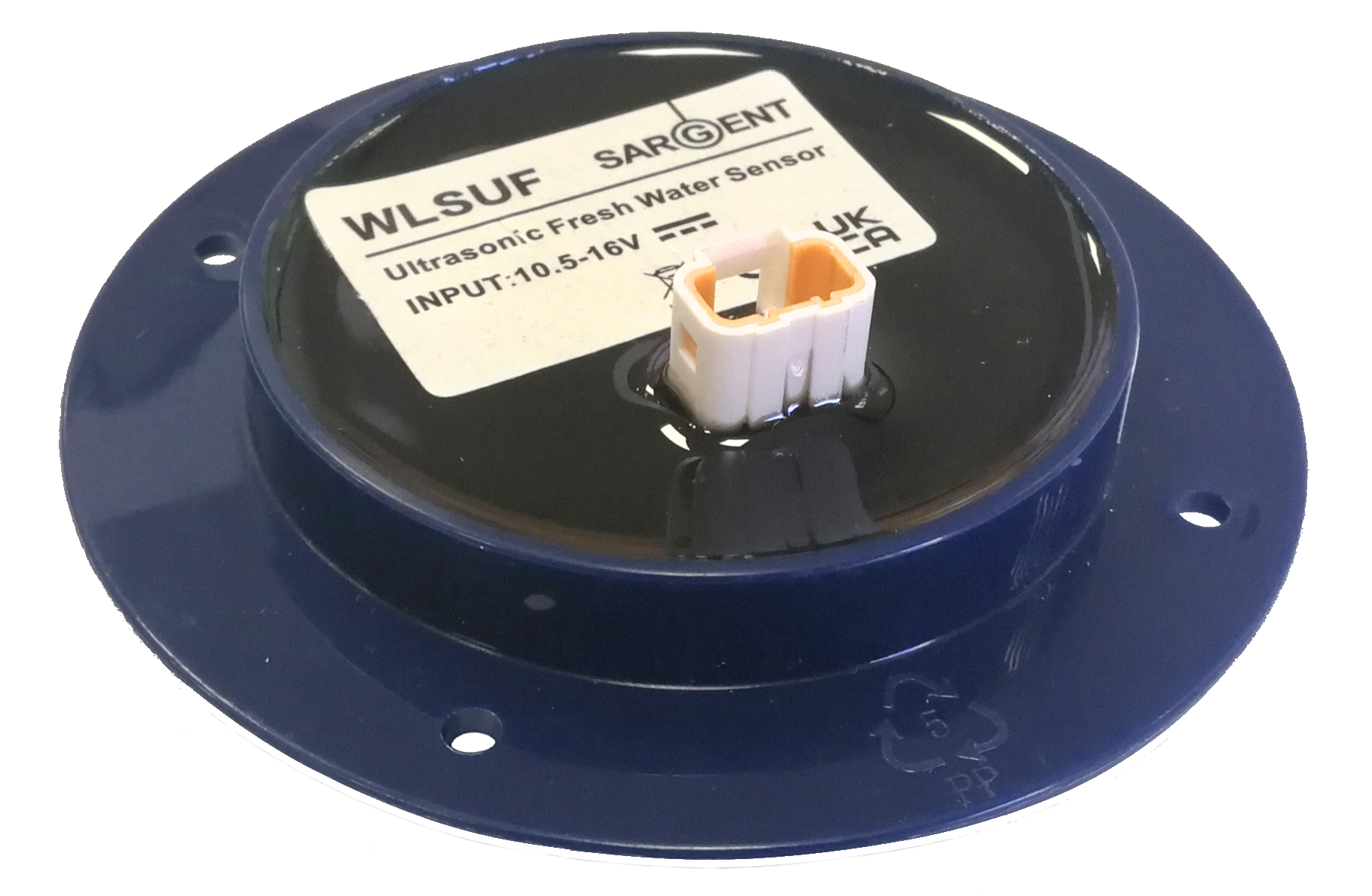

Fresh Sensor Part: WLSUF (blue colour)
Waste Sensor Part: WLSUW (grey colour)
Features
- Accurate measurement - Reads water level in steps of 1%
- Ultrasonic sensing technology - Contactless measurement reduces need for sensor cleaning
- Automatic calibration - for tanks up to 1 metre deep
- Fully sealed - Fully potted with IPX7 waterproof connector
- Multi-tank sensing - Models available for both Fresh & Waste water tanks
- CAN Bus Interface - Communicates charge status with other equipment
Specification
Model | WLSUF / WLSUW |
Input voltage | 10.5 - 16V |
Tank Depth Range | 100 - 1000mm |
Resolution | 1mm / 1% |
Communication | CAN Bus |
Dimensions | 80mm (diam) x 22mm |
Weight | 67g |
