RV77 - Camera

Overview

The RV77 camera is mainly used as a rear view or reversing camera.

Connector Pinout

​

Variants

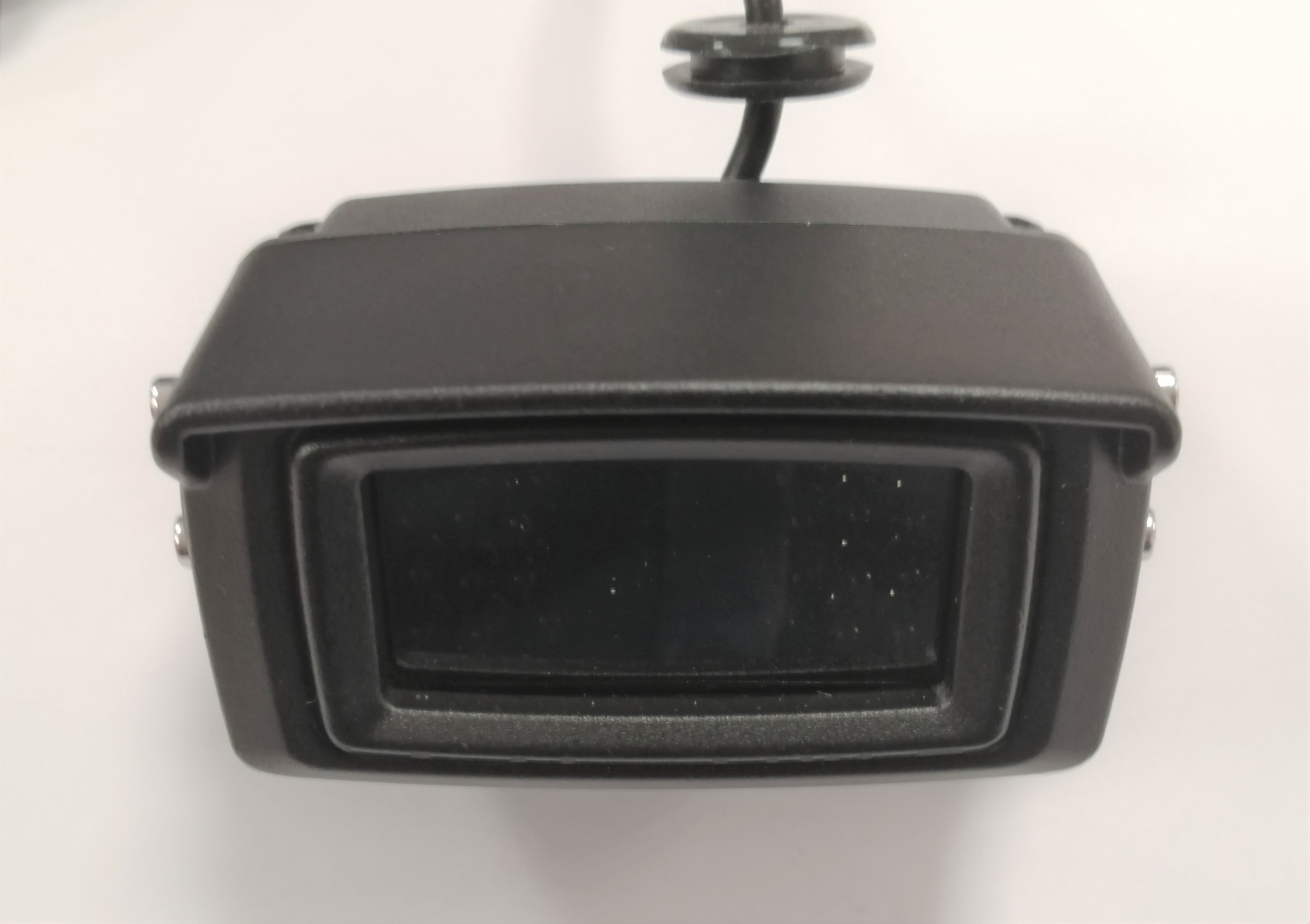

The White RV77 is no longer manufactured but we do have a near direct replacement shown below.

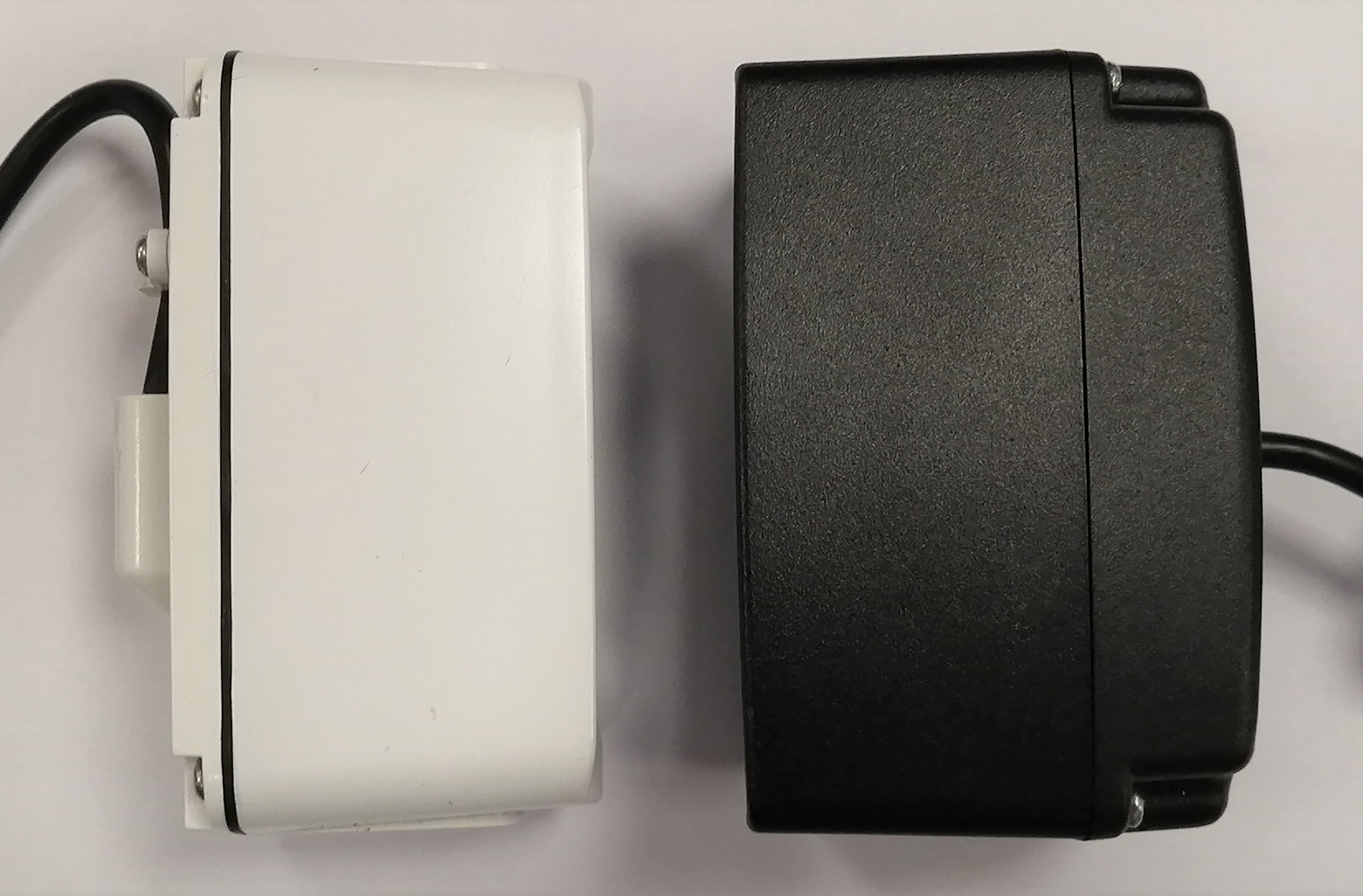

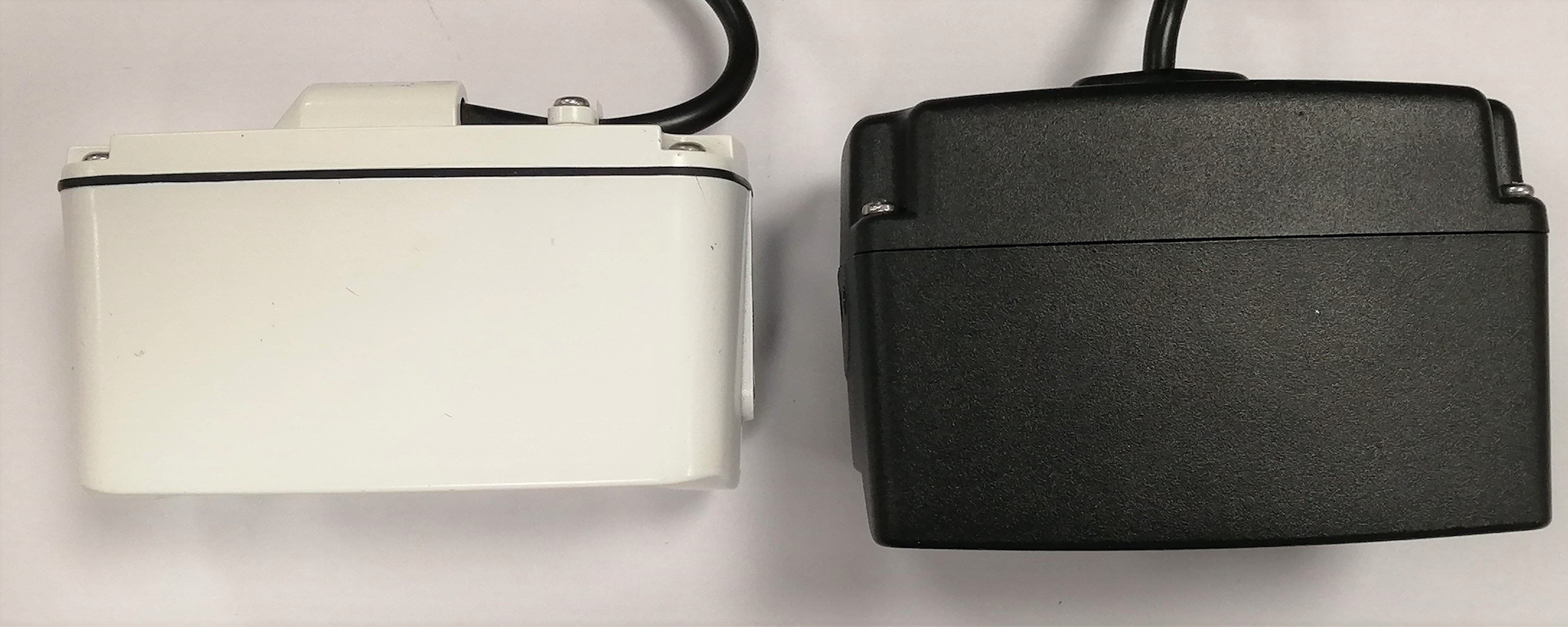

This camera is pinout compatible but as the picture below show, the Black case RV77 is slightly larger in dimension so installing this camera would require some modification to the cameras mount on you vehicle. The mounting holes are in the same locations.
