RV207 - Camera

Overview

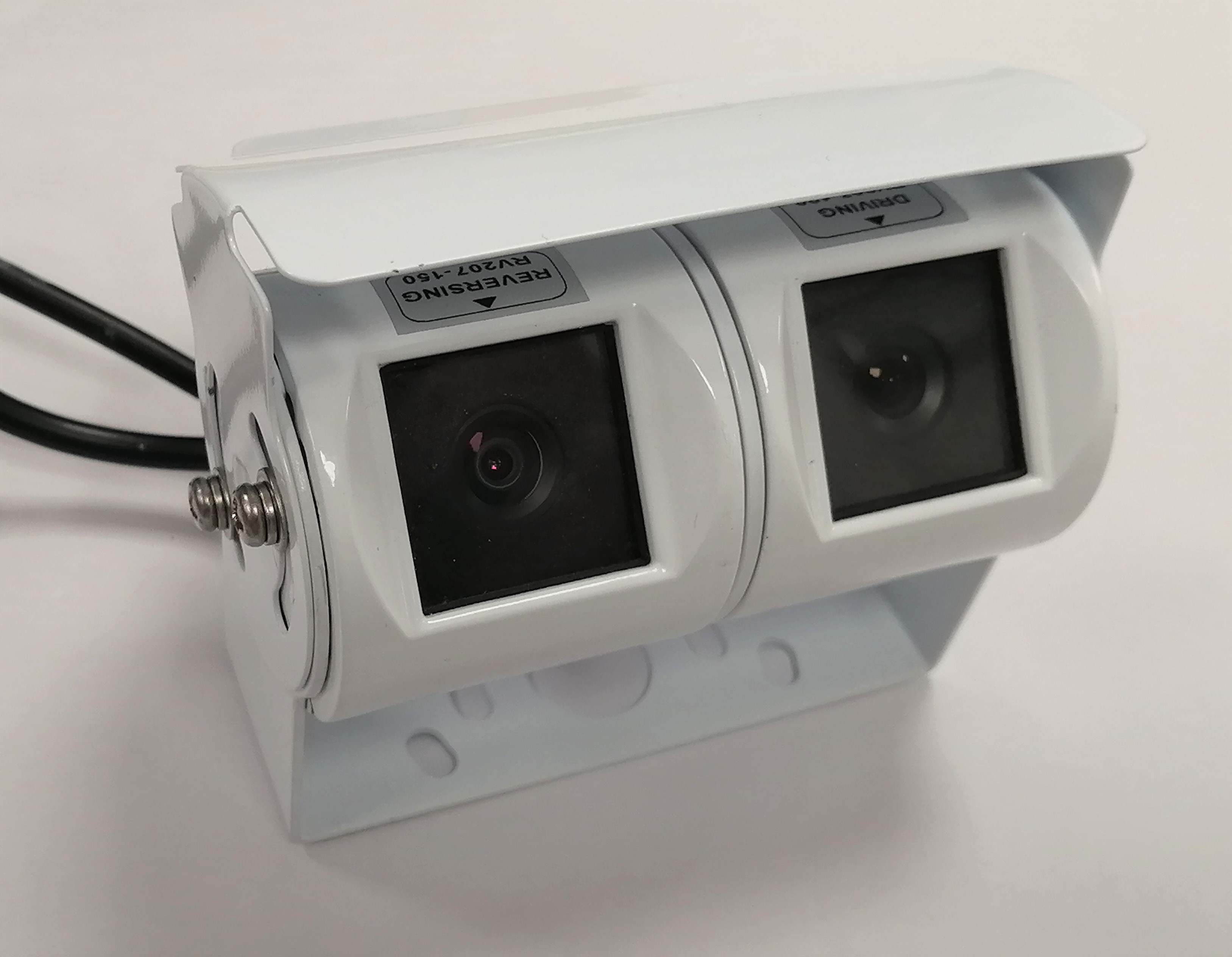

The RV207 camera is a twin camera that is used for rear view (120 Degree) and reversing view (150 Degree). The camera shown above is normally supplied with a different mounting bracket depending on how the camera is mounted on the vehicle.

Connector Pinout

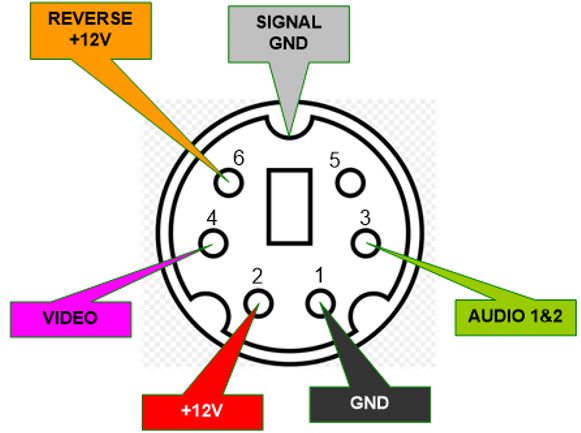

Driving Camera Output

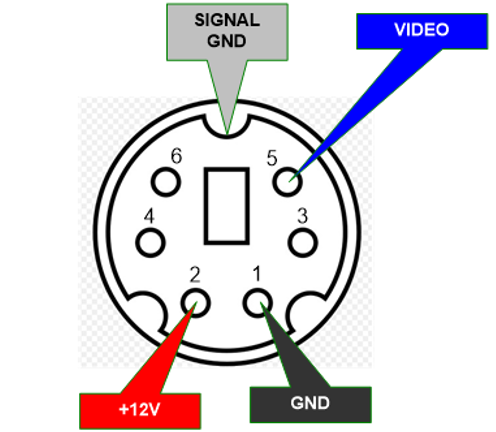

Reversing Camera Output
