PXC360 - 25amp, 3-Stage Battery Charger with LCD Display & CAN Bus


Overview

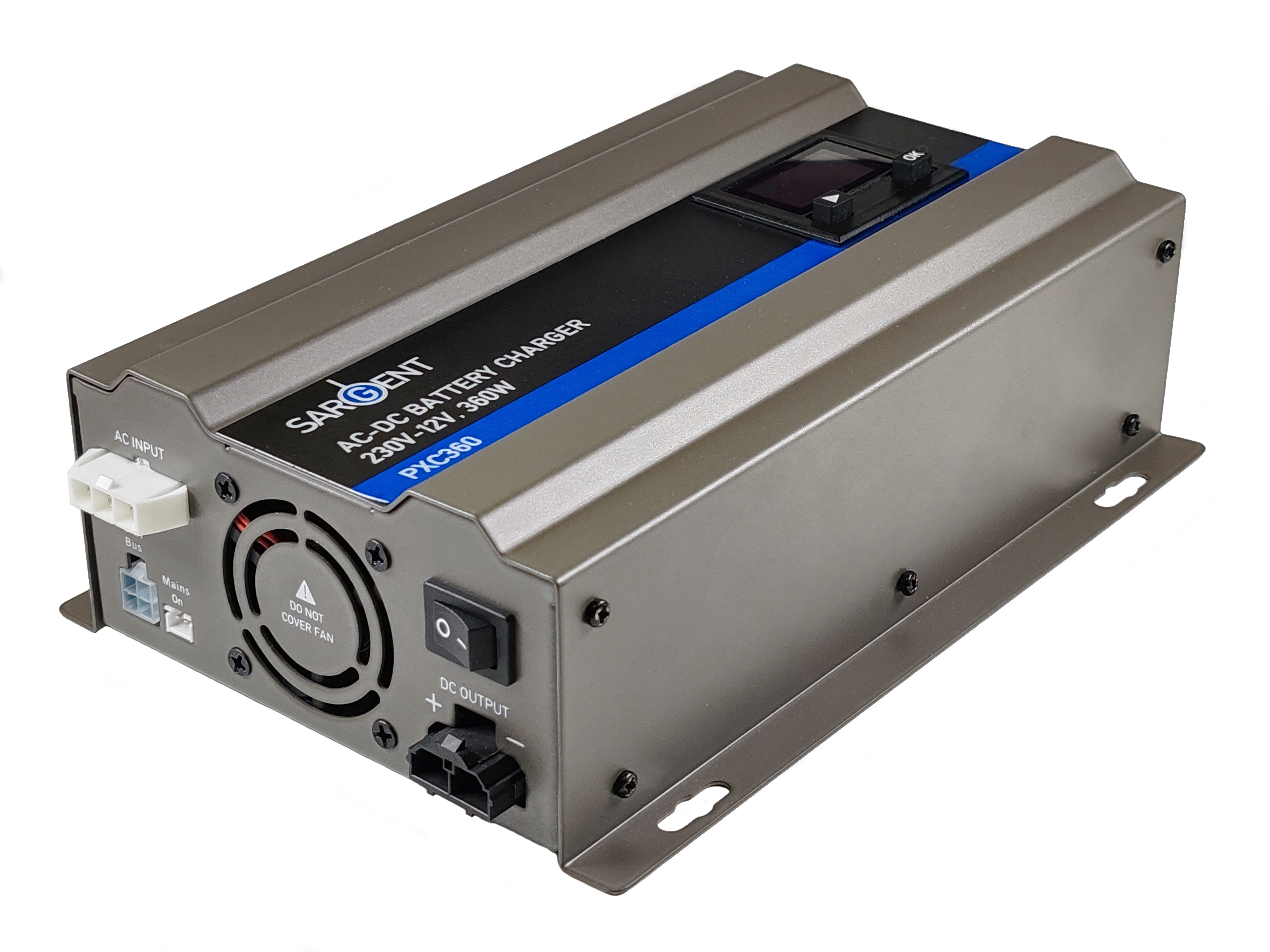

The PXC360 multi-stage battery charger is designed for leisure vehicle applications, providing power for both battery charging and 12 volt appliances. The integrated LCD display shows battery charging status and allows setup for different battery chemistries. A PSU mode allows the charger to be used without a battery fitted and the Silent mode avoids noise during overnight charging. By using the integrated CAN Bus communication, the charger is able to connect with Sargent power control systems to provide additional charger information.

Features

  1. Multi-Stage charging - 3-Stage profile maximises charge into the leisure battery
  2. High capacity output - up to 25Amps for charging batteries from 90 to 300Ah
  3. Integrated LCD Display - for charger setup and display of battery charging status
  4. PSU Mode - Charger works as a power supply when no battery is fitted
  5. Quiet operation - from intelligent fan with Silent Mode
  6. Lithium Wakeup Mode - Charger can wake a sleeping lithium battery
  7. Fully protected - built-in overload, short circuit & over temperature protection
  8. CAN Bus Interface - Communicate charger status with other equipment

Specification

Model
PXC360
Power
360W
Input Voltage
200 - 240VAC
Charging Current (max)
25A @ 14.5V
Boost Voltage
14.7V (max)
Float Voltage
13.8V (max)
Compatible batteries
Flooded, Gel, AGM, Lithium
Battery size
90 - 300Ah
Cooling method
Intelligent fan with Silent Mode
Communication
CAN Bus
Dimensions (LxWxH)
221x157x69mm
Weight
1.59kg

Info
For suitable batteries see the NCC's battery scheme
or seek advice from the battery manufacturer
