How to calibrate the EC700 and EC800 control panels

How to calibrate the EC700 and EC800 control panels

EC700

To calibrate the EC700 control panel you need to start by turning OFF the EC700 power supply unit (PSU).


You then need to turn the shutdown button back on and at the same time continue to tap on the control panel screen. When the system turns on you will be presented with a BLUE screen and will also be asked to touch 3 dots.

After you have touched the 3 dots on screen, the control panel will then read calibrated on a BLUE screen before return to it’s normal display and the calibration process will be complete.

EC800

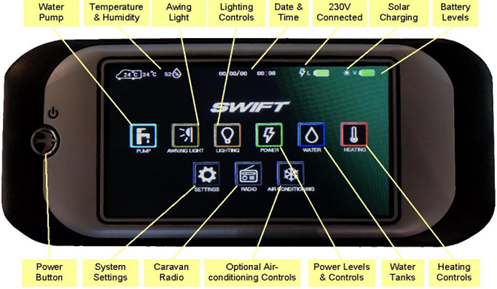

To calibrate the EC800 control panel you need to start by turning ON the EC800 power supply unit (PSU) and then turn on the control panel by pressing the power button.


You then need to press and hold the power button on the control panel, after 5 seconds the screen will turn off but you need to continue to press and hold the power button for further 15 seconds until you are presented with a BLUE screen asking you to press 3 dots.

After you have touched the 3 dots on screen, the control panel will then read calibrated on a BLUE screen before returning to it’s normal display and the calibration process will be complete.
