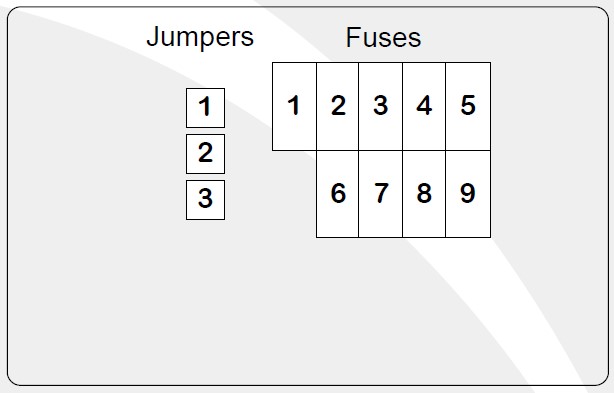

Configuration (Jumper) Settings
Pins joined = ON pins open =OFF
1 = Step operates with LOCK
2 = Step operates with UNLOCK
3 = Awning / Entry light operates with Step

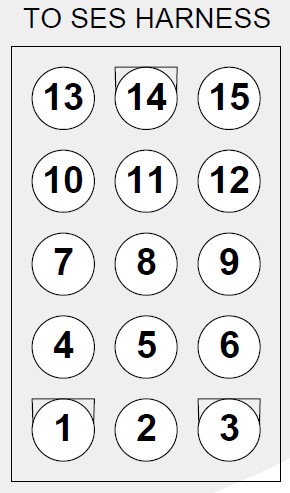

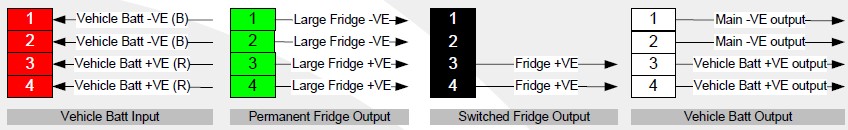

Connections
Pin SES Description
1= THIRD BRAKE LIGHT FEED FROM CAB
2= D- SIGNAL FROM CAB (-VE ENGINE RUN)
3= VEHICLE SPEED SIGNAL
4= DOOR LOCK SIGNAL
5= DOOR UNLOCK SIGNAL
6= REAR DOOR SIGNAL INPUT TO CAB
7= CEILING LIGHT +VE SUPPLY FROM CAB
8= CEILING LIGHT -VE SUPPLY FROM CAB
9= CAN BUS SIGNAL (LOW)
10= CAN BUS SIGNAL (HIGH)
11= SIDE MARKER SIGNAL FROM CAB
12= AIRCON SIGNAL FROM CAB
13= IGNITION SIGNAL FROM CAB
14= HEATER SIGNAL FROM CAB
15= NOT CONNECTED
Connections in red show signals not used by the EM50.
Connections in amber show optional signals that could be used by the EM50, if the vehicle manufacturer required.
Connections in black show required signals
Outputs (white)
1= THIRD BRAKE LIGHT FEED
2= AWNING LIGHT FEED
3= FEED TO AUX AIRCON
4= DOOR LOCK SIGNAL TO REAR DOOR
5= DOOR UNLOCK SIGNAL TO REAR DOOR
6= REAR DOOR SIGNAL (DOOR CONTACT)
7= CEILING LIGHT +VE
8= CEILING LIGHT -VE
9= STEP SIGNAL +VE STEP IN (OMNI ORANGE)
10= STEP SIGNAL +VE STEP OUT (OMNI PURPLE)
11= SIDE MARKER FEED
12= STEP LIMIT SWITCH SIGNAL (OMNI GREY)
13= STEP OPERATE SWITCH (PUSH BUTTON)
14= FEED TO AUX HEATER
15= ENTRY LIGHT FEED
Connections in amber show outputs that are only available if option used by vehicle manufacturer.
Connections in red show signals not used by the EM50 but passed through for future use.
Connections in black show standard outputs available for use on any version of EM50.
