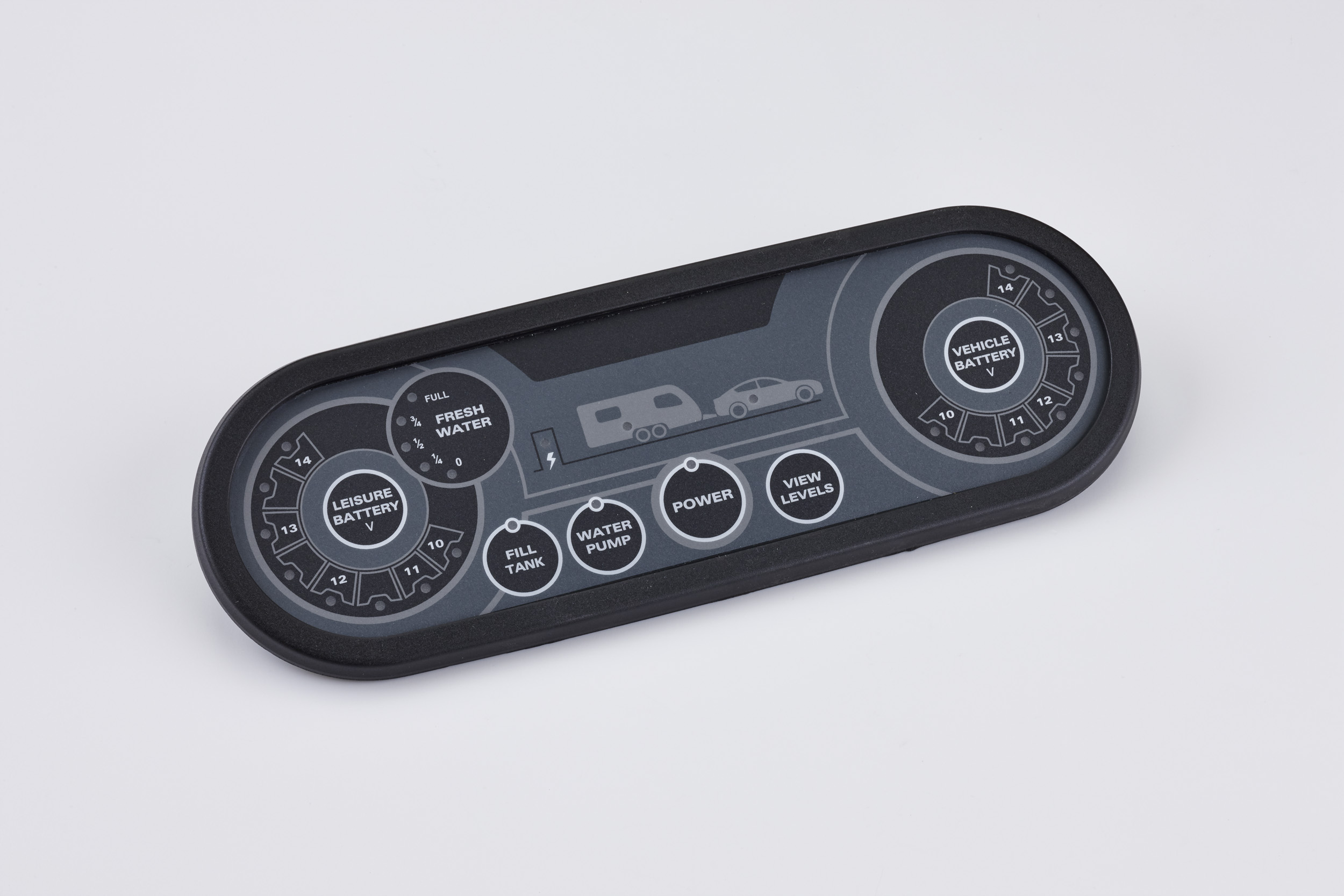

EC451 - Control Panel (Caravans / Battery + Water + Fill)

EC451 - Control Panel (Caravans / Battery + Water + Fill)


Overview

The EC451 control panel provides switching control and monitoring for caravans such as power, water pump, tank filling and leisure battery. It also provides monitoring of the battery and water tank capacity.

Features

  1. Keypad switching for 12V Power, Vehicle/Leisure Batteries, Water Pump & Tank Fill
  2. Battery level gauge (Vehicle & Leisure batteries)
  3. Fresh Water level gauge
  4. Communication via CAN Bus

Variants

The control panel is available in the following variants:-

Part No
Features
Compatible PSU's
EC442
Battery Only
EC440, EC444, EC445, EC448, EC449, EC455
EC443
Battery Only
EC440, EC444, EC445, EC448, EC449, EC455
EC447
Battery / Fresh Water
EC444, EC445, EC448, EC449, EC455
EC451
Battery / Fresh Water / Tank Fill
EC444, EC445, EC448, EC449, EC455
