EC444 - Power Supply Unit (Caravans / Floor Mount / without housing)

EC444 - Power Supply Unit (Caravans / Floor Mount / without housing)


Overview

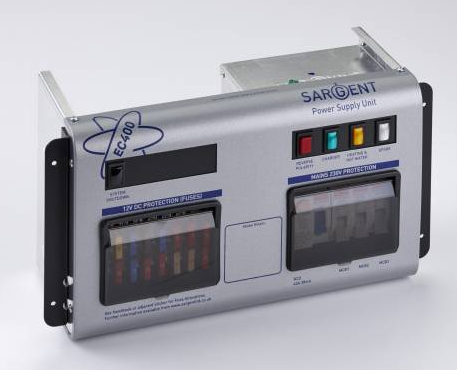

The EC400 Series Power Supply Unit (PSU) is used to provide power and protection for electrical equipment within a caravan. The unit can be used in conjunction with a Control Panel and Water Level Sensors to provide a complete Power Control System. This version is designed for low level mounting in an enclosed compartment, where the rear of the unit is not accessible.

Features

  1. RCD for earth leakage protection of 230V mains supply
  2. MCB's for overload protection of 230V mains supply
  3. Blade fuses for protection of 12V circuits (via 14 x outputs)
  4. Switches for controlling Heating, Battery Charger & System Shutdown
  5. Integrated Multi-Stage Battery Charger (up to 300 watts)
  6. Reverse polarity indicator (for 230V mains supply)
  7. Additional connections for Control Panel & Water Level Sensors

Variants

The system is available in the following variants:-

Part NoVariationsCompatible Control Panels
EC444
No LCD display, 3 x 10A MCBsEC441, EC442, EC446, EC447, EC451
