EC100 / EC101 - Control Panel

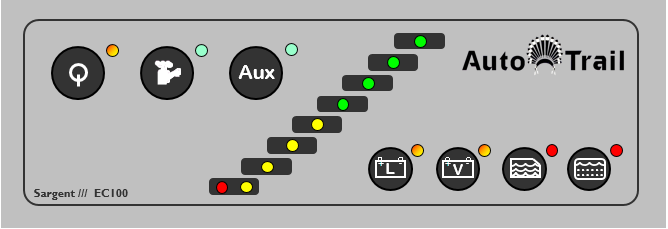

EC100
EC101
Overview
The EC100 Control Panel can be used in conjunction with the EC225 Power Supply Unit, for control and monitoring of electrical systems fitted in a leisure vehicle such as batteries, chargers, lighting, water tanks & solar panels.
Features
- LED indicators.
- Controls for Power On/Off, Battery Selection, Water Pump & 12V Lighting.
- Monitoring for Battery voltage/current, Water Level.
Battery Current Calibration
Each EC100 control panel needs 'calibrating' to match the current sensor fitted within the EC225PSU. This is a one off operation and will only need repeating if the PSU or control panel are replaced. The procedure is as follows:
- With the charger turned off, and the power turned off at the control panel (no LED’s on).
- Press and hold the leisure battery button.
- Press the power on button and then release both buttons.
- Wait for the LED cycle to complete while the calibration takes place.
- The power will now turn on and the calibration is complete.
Switch Operation
Symbol | Function | Description |
Main 12V Power Switch | This switch turns on (or off) the 12-volt power. As the power is turned on the Leisure battery is automatically selected and the LED display shows the battery voltage. The power on LED shows green under normal conditions. If the PSU overheats or has a fault the LED will show red. | |
Water Pump Power Switch | This switch turns on power to the internal water pump ready for use. It can be used to turn off the pump over night to avoid any noise from the pump. When the switch is on, the LED will show green. When the pump is turned on, the audible alarm for the fresh and waste water tanks is also turned on (see below). | |
Auxiliary Power Switch | This switch turns the Awning light on (or off). When the switch is on the LED will show green. | |
Select LEISURE Battery and display battery voltage | This switch is used to select the Leisure battery and to display the battery voltage level. Press once to select and display the voltage. This display will turn off automatically after 10 seconds. If you would like the voltage displayed permanently press and hold the button until you hear a long beep. To cancel the permanent display press the button again, or alternatively press one of the other level buttons. The LED next to the button will show that the battery has been selected. The LED will show green if the battery is being charged and will show red if the battery is being discharged. If the Leisure battery drops below 9.5v an alarm will sound to warn you that the battery is low. This alarm lasts for 1 minute and will not be repeated (unless the power is turned off then on again). | |
Select VEHICLE Battery and display battery voltage | This switch is used to select the Vehicle battery and to display the battery voltage level. Press once to select and display the voltage. This display will turn off automatically after 10 seconds. If you would like the voltage displayed permanently press and hold the button until you hear a long beep. To cancel the permanent display press the button again, or alternatively press one of the other level buttons. The LED next to the button will show that the battery has been selected. The LED will show green if the battery is being charged and will show red if the battery is being discharged. If the Vehicle battery drops below 10.9v an alarm will sound to warn you that the battery is low. This alarm lasts for 1 minute and then the battery selection will automatically switch over to the Leisure battery to protect the vehicle battery. | |
Water Level Test | This switch is used to display the fresh water level within the onboard water tank. Press once to select the Fresh tank and show the water level. The tank has 5 levels Empty, ¼, ½, ¾ and Full. This display will turn off automatically after 10 seconds. If you would like the water level displayed permanently press and hold the button until you hear a long beep. To cancel the permanent display press the button again, or alternatively press one of the other level buttons. If the water pump power switch is turned ON and the water level drops below ¼ a warning beep will be heard and the LED next to the button will flash. To cancel the warning, press the water level button. The warning will not be repeated unless the water pump power switch is turned off and on again. This is to ensure the warning does not become a nuisance. If the water pump power switch is turned OFF and the water level drops below ¼ the LED next to the button will show red to indicate the tank is nearly empty. | |
Waste Level Test | This switch is used to display the waste water level within the onboard wastewater tank. Press once to select the waste tank and show the water level. The tank has only 2 levels Empty or Full. This display will turn off automatically after 10 seconds. If you would like the waste level displayed permanently press and hold the button until you hear a long beep. To cancel the permanent display press the button again, or alternatively press one of the other level buttons. If the water pump power switch is turned ON and the wastewater level rises to Full a warning beep will be heard and the LED next to the button will flash. To cancel the warning, press the waste level button. The warning will not be repeated unless the water pump power switch is turned off and on again. This is to ensure the warning does not become a nuisance. If the water pump power switch is turned OFF and the water level rises to Full the LED next to the button will show red to indicate the tank is nearly Full. |
