LB Series - Lithium Deep Cycle Batteries with CAN Bus

LB Series - Lithium Deep Cycle Batteries with CAN Bus


Overview

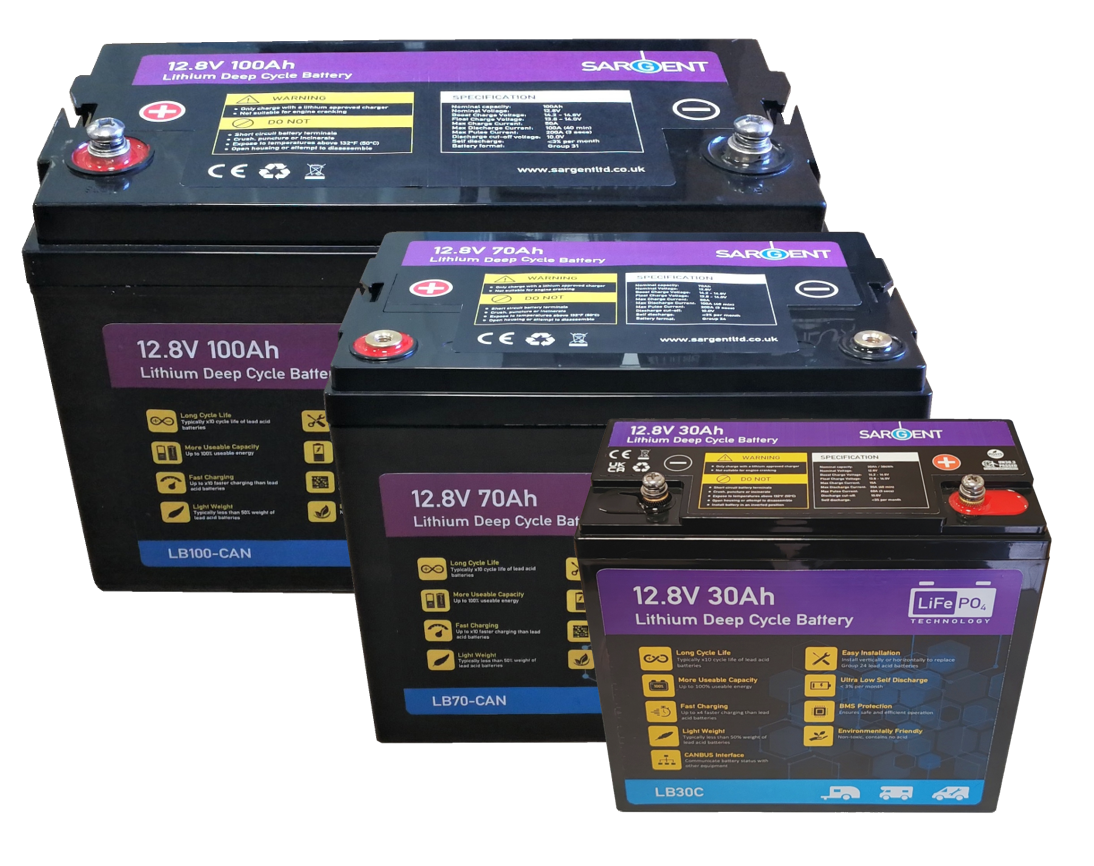

The Sargent range of lithium deep cycle batteries provide a simple drop-in replacement for most lead acid batteries used in leisure applications. They provide significant advantages over lead acid, including reduced weight, longer life, a more useable capacity and faster charging. By using the integrated CAN Bus communication, the batteries are able to connect with Sargent power control systems to provide additional battery management features.

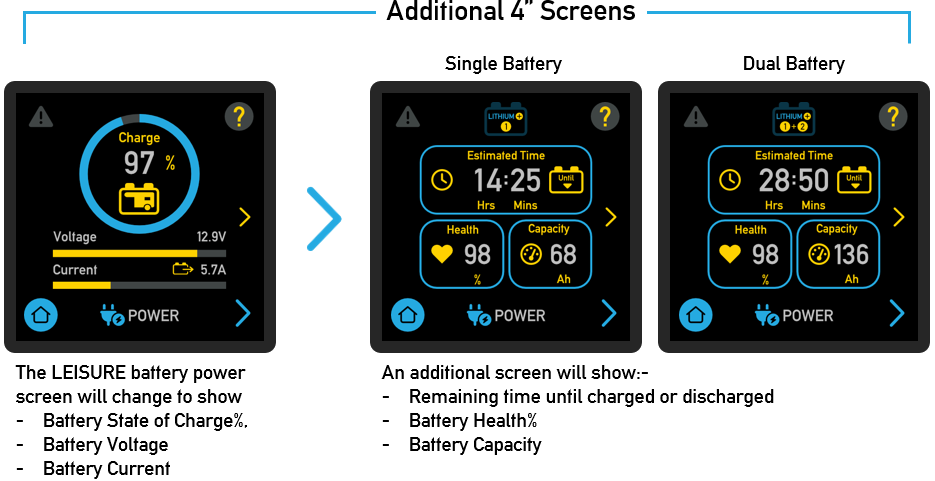

Information for EC940 Display
When used with this control panel, the battery is able to display State of Charge, Health, Capacity and Time until charged/discharged

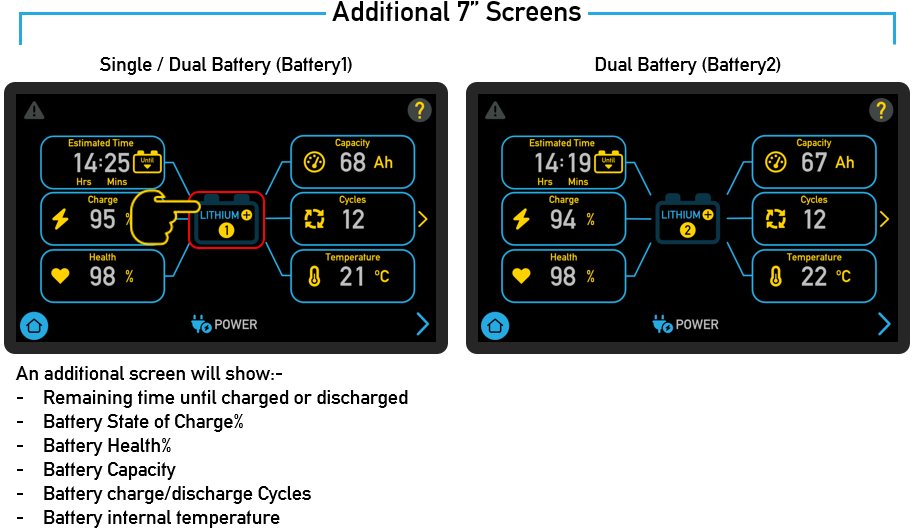

Information for EC970 Display
When used with this control panel, the battery is able to display State of Charge, Health, Capacity and Time until charged/discharged, Charge Cycles & Temperature


Features

  1. Long Cycle Life - Typically x10 cycle life of lead acid batteries
  2. More Useable Capacity - Up to 100% useable capacity
  3. Fast Charging - Up to x4 faster charging than lead acid batteries
  4. Light Weight - Typically less than 50% weight of lead acid
  5. Ultra Low Self Discharge - < 3% per month
  6. BMS Protection - Ensures safe and efficient operation
  7. Easy Installation - Install in any direction to replace most lead acid batteries
  8. Environmentally Friendly - Non-toxic, contains no acid
  9. CAN Bus Interface - Communicate battery status with other equipment

Specification

Model
LB30C
LBC70C
LB100C
Nominal capacity
30Ah
70Ah
100Ah
Nominal voltage
12.8V
12.8V
12.8V
Rec Boost charge voltage
14.2 - 14.6V
14.2 - 14.6V
14.2 - 14.6V
Rec Float Charge Voltage
13.6 - 13.9V
13.6 - 13.9V
13.6 - 13.9V
Max charge current
15A
35A
50A
Max cont. discharge current
30A
70A
100A
Max pulse current (3 secs)
60A
140A
200A
Cut-ff / Re-connect voltage
10V / 11.2V
10 / 11/2V
10 / 11.2V
Self discharge per month
< 3%
< 3%
< 3%
Communication
CAN Bus
CAN Bus
CAN Bus
Form factor
-
Group 24
Group 31
Terminals
M5
M8
M8
Dimensions
180 x 76 x 168
260 x 168 x 218
329 x 172 x 223
Weight
3.3kg
9.8kg
13.5kg
