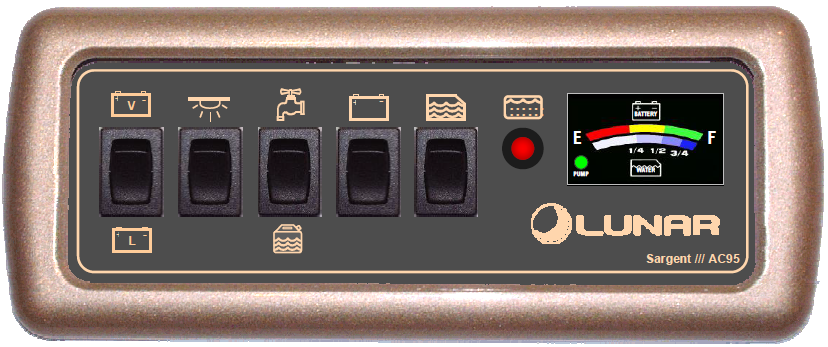

AC95 - Control Panel
Overview
The EC95 control panel provides switching control for vehicle systems such as dual water pumps, lighting and battery select. It also provides monitoring of the battery capacity and water level.
Features
- Switches for 12V Power, Lighting & Water Pumps
- Battery level gauge
- Water level gauge
- Waste level indicator
Switch Operation
Symbol | Function | Description |
12V Power Selection - Leisure Battery | This switch turns on (or off) the 12-volt power from the Leisure battery. Place the switch in the down position to draw power from the Leisure battery. Place the switch in the centre position to turn the power off. | |
12V Power Selection - Vehicle Battery | This switch turns on (or off) the 12-volt power from the Vehicle battery. Place the switch in the up position to draw power from the Vehicle battery. Place the switch in the centre position to turn the power off.  NOTE: The vehicle battery should only be used for short periods of time / small loads otherwise the battery may become discharged and could prevent the vehicle from starting. | |
Interior Light | This switch operates the internal lights. | |
Internal Water Pump | This switch turns on power to the internal water pump ready for use. It can be used to turn off the pump over night to avoid any noise from the pump. NOTE: A green indicator lamp will illuminate within the bottom left corner of the battery gauge when the pump motor is running. | |
External Water Pump | This switch turns on power to the external water pump ready for use. Place the switch in the centre position to turn the power off over night to avoid any noise from the pump. This is a dual direction selector switch that allows the selection of either the internal pump (switch up) or external pump (switch down). | |
Battery Level Test | This switch is used to display the
battery voltage level. Press and hold
the switch to display the battery level on the gauge. The green region indicates a battery with a good
charge, the yellow region indicates a battery with an adequate charge, and the
red region indicates a battery that requires charging. | |
Water Level Test | This switch is used to display the
fresh water level within the onboard water tank. Press and hold the switch to display the
water level on the gauge. The gauge indicates the water level on an ‘Empty - ¼ -
½ - ¾ - Full’ scale, with empty being on the left. | |
Waste Level Indicator Full | This Red indicator illuminates when the water level in the waste water tank reaches the full level. |
