AC90 - Control Panel

AC90 - Control Panel


Overview

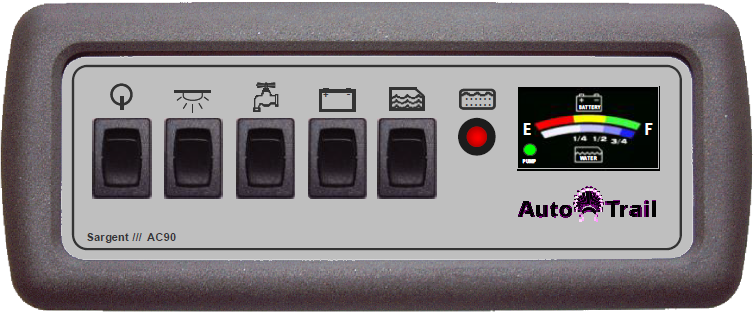

The EC90 control panel provides switching control for vehicle systems such as water pumps, lighting and leisure battery. It also provides monitoring of the battery capacity and water level.

Features

  1. Switches for 12V Power, Lighting & Water Pumps
  2. Battery level gauge
  3. Water level gauge
  4. Waste level indicator

Switch Operation

Symbol
Function
Description

12V Power Switch
This switch turns on (or off) the 12-volt power from the Leisure battery. Place the switch in the down position to draw power from the Leisure battery. Place the switch in the centre position to turn the power off.

Awning Light
This switch operates the external awning light.

Water Pump

This switch turns on power to the internal water pump ready for use. It can be used to turn off the pump over night to avoid any noise from the pump.

NOTE: A green indicator lamp will illuminate within the bottom left corner of the battery gauge when the pump motor is running.

Battery Level Test

This switch is used to display the battery voltage level.  Press and hold the switch to display the battery level on the gauge.

The green region indicates a battery with a good charge, the yellow region indicates a battery with an adequate charge, and the red region indicates a battery that requires charging.

Water Level Test

This switch is used to display the fresh water level within the onboard water tank.  Press and hold the switch to display the water level on the gauge.

The gauge indicates the water level on an ‘Empty - ¼ - ½ - ¾ - Full’ scale, with empty being on the left.

Waste Level Indicator 3/4 Full
This Red indicator illuminates when the water level in the waste water tank is greater than or equal to 75% full.
