AC80 & SC20 - Control Panel

AC80 & SC20 - Control Panel

AC80


SC20


Overview

The EC80 control panel provides switching control for vehicle systems such as water pumps, lighting and leisure battery. It also provides monitoring of the battery capacity and water level.
The SC20 control panel provides switching control for the Alde heating system.

Features

  1. Switches for 12V Power, Lighting, & Dual Water Pumps
  2. Battery level gauge
  3. Water level gauge

Switch Operation

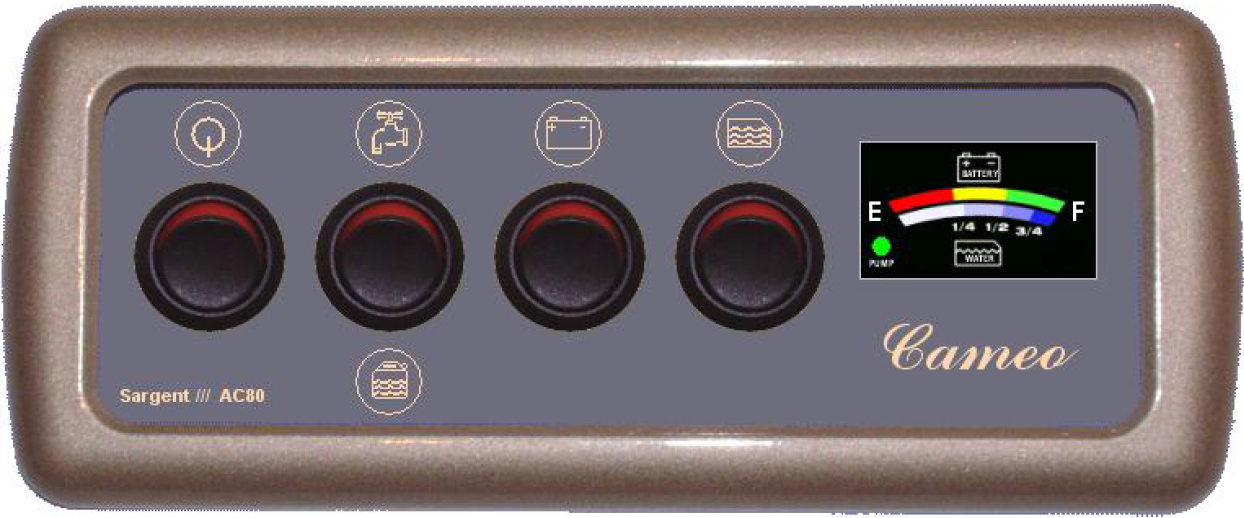

AC80

Symbol
Function
Description

12V Power On / Off
This switch turns on (or off) the 12 volt power to all circuits.
NOTE: As this switch works in conjunction with a relay (that uses around 40mA to operate), it should only be used for relatively short periods of time while using the caravan (i.e. when going out for the day).
For long term isolation of the 12 volt power, please place the Car / Van selector switch on the ESM2004 Power Supply Unit in the centre (Off) position (i.e. during storage)

Dual Pump

In caravans with an onboard water tank, the pump switch will be a two-way switch with a centre off position.  This allows the selection of either the internal pump (switch up – Tap symbol) or external pump (switch down – Water container symbol).

NOTE: A green indicator lamp will illuminate within the bottom left corner of the battery gauge when the internal pump motor is running.

Battery Level Test

This switch is used to display the battery voltage level.  Press and hold the switch to display the battery level on the gauge.

The green region indicates a battery with a good charge, the yellow region indicates a battery with an adequate charge, and the red region indicates a battery that requires charging.

Water Level Test

This switch is used to display the fresh water level within the onboard water tank.  Press and hold the switch to display the water level on the gauge.

The gauge indicates the water level on an ‘Empty - ¼ - ½ - ¾ - Full’ scale, with empty being on the left.

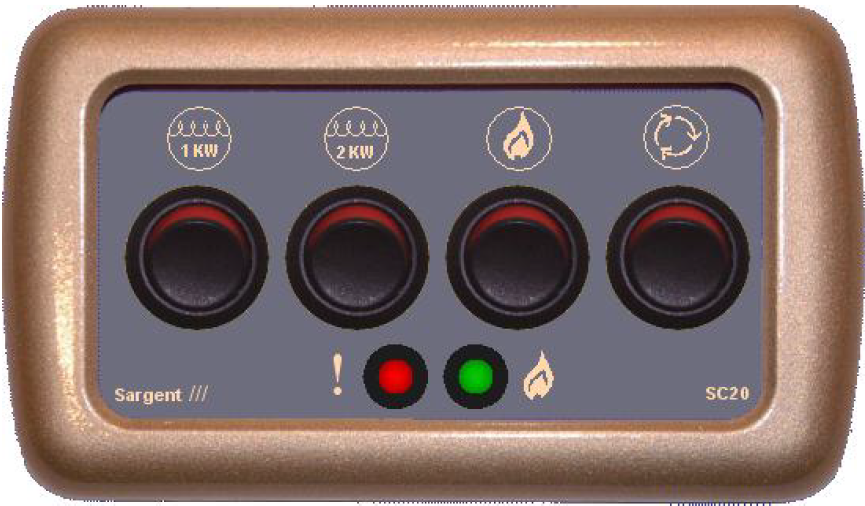

SC20

Symbol
Function

1kW Heating Element On / Off

2kW Heating Element On / Off

Gas Burner On / Off

Circulating Pump On / Off

Gas Burner Flame Indicator

Fault Warning
