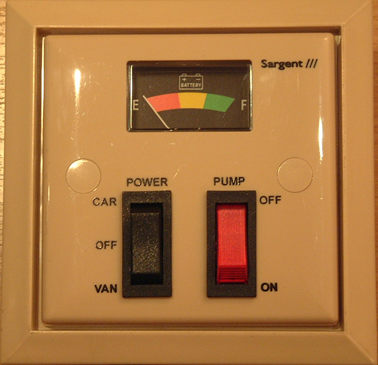

AC20 - Control Panel
Overview
Features
- Switches for 12V Power & Water Pumps
- Battery level gauge

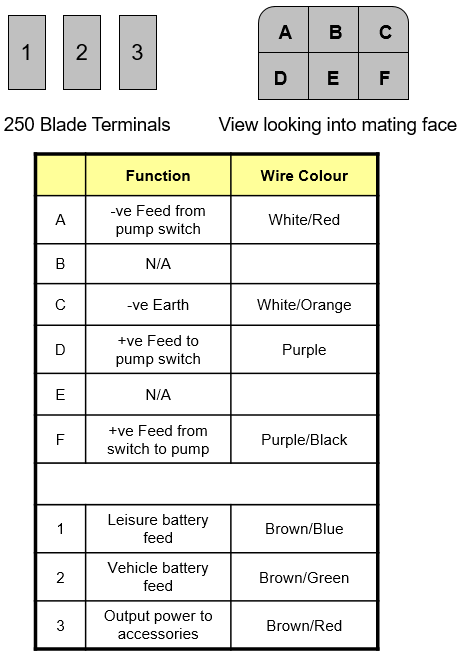

Electrical Connections
Switch Operation
Symbol | Function | Description |
VAN | 12v POWER selection - Leisure battery | This switch turns on (or off) the 12-volt power from the Leisure battery. Place the switch in the down position to draw power from the Leisure battery and to display the battery voltage on the battery gauge.  NOTE: The green region indicates a battery with a good
charge, the yellow region indicates a battery with an adequate charge, and
the red region indicates a battery that requires charging. Place the switch in the centre position to turn the power off. |
CAR | 12v POWER selection - Vehicle battery | This switch turns on (or off) the 12-volt power from the Vehicle battery. Place the switch in the up position to draw power from the Vehicle battery and to display the battery voltage on the battery gauge. Place the switch in the centre position to turn the power off. NOTE: The vehicle battery should only be
used for short periods of time / small loads otherwise the battery may become
discharged and could prevent the vehicle from starting. |
PUMP | Water Pump | This switch turns on power to
the internal water pump ready for use. It can be used to turn off the pump over night to avoid any noise from
the pump. NOTE: The switch will illuminate
when the pump motor is running. |
