AC75 - Control Panel

AC75 - Control Panel


Overview

The AC75 control panel provides switching control for vehicle systems such as water pumps, lighting and leisure battery. It also provides monitoring of the battery capacity and water level.

Features

  1. Switches for 12V Power, Lighting, & Dual Water Pumps
  2. Battery level gauge
  3. Water level gauge

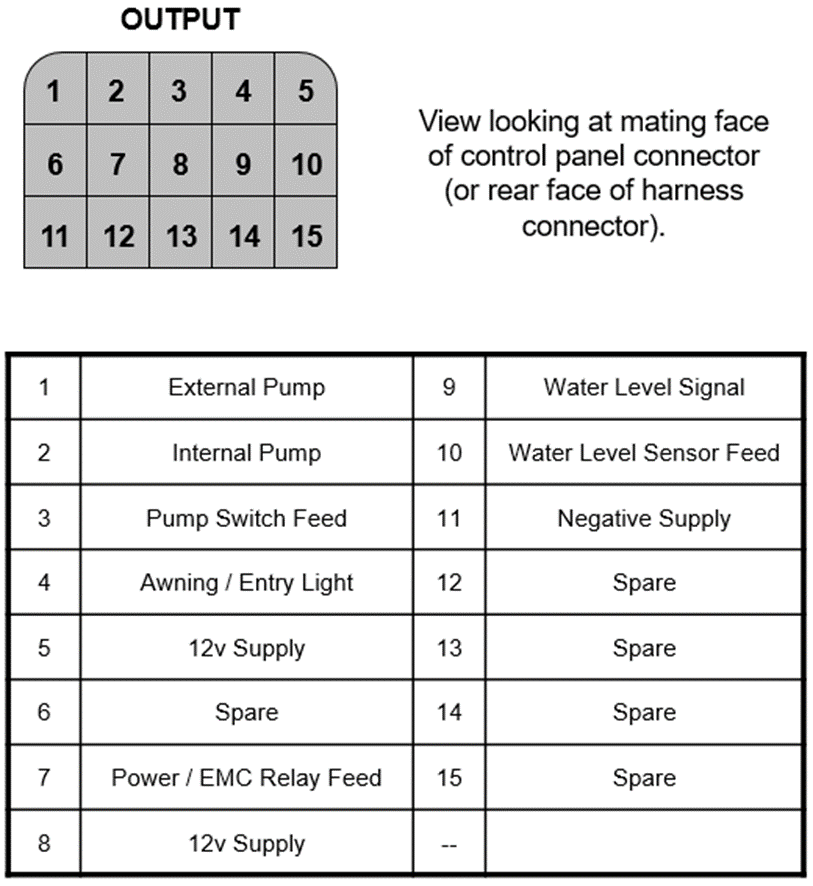

Electrical Connections


Switch Operation


Symbol
Function
Description

12V Power On / Off
This switch turns on (or off) the 12 volt power to all circuits.
NOTE: As this switch works in conjunction with a relay (that uses around 40mA to operate), it should only be used for relatively short periods of time while using the caravan (i.e. when going out for the day).
For long term isolation of the 12 volt power, please place the Car / Van selector switch on the ESM2004 Power Supply Unit in the centre (Off) position (i.e. during storage)

Entry Light
This switch operates the internal entry light (usually the first light within the caravan).

Dual Pump

In caravans with an onboard water tank, the pump switch will be a two-way switch with a centre off position.  This allows the selection of either the internal pump (switch up – Tap symbol) or external pump (switch down – Water container symbol).

NOTE: A green indicator lamp will illuminate within the bottom left corner of the battery gauge when the internal pump motor is running.

Battery Level Test

This switch is used to display the battery voltage level.  Press and hold the switch to display the battery level on the gauge.

The green region indicates a battery with a good charge, the yellow region indicates a battery with an adequate charge, and the red region indicates a battery that requires charging.

Water Level Test

This switch is used to display the fresh water level within the onboard water tank.  Press and hold the switch to display the water level on the gauge.

The gauge indicates the water level on an ‘Empty - ¼ - ½ - ¾ - Full’ scale, with empty being on the left.

Optional Remote Control Unit

When using the optional remote control unit, please ensure the control panel ‘12v Power’ switch is in the ON position and the ‘Entry light’ switch is in the OFF position for correct operation of the remote control (as the remote control operates in parallel with the control panel switches).  The remote control button [I] controls the Entry Light and button [II] controls the 12v Power.

If you do not wish to use the remote control, or the remote battery is flat / remote has been lost, you can of course return to manual operation by using the switches on the control panel.  If the power has been turned off using the remote control and then the remote has been lost / battery become flat you will need to carry out the following to reset the caravan:  Place the Car / Van selector switch on the ESM2004 power supply unit in the centre (OFF) position and turn the charger switch to the OFF position, wait 5 seconds and then turn the charger & Car / Van selector switch back on.
The UH**** number on the back of the remote control is the remote code number.  Please keep a record of this number in case you need to order a replacement or additional remote control.
